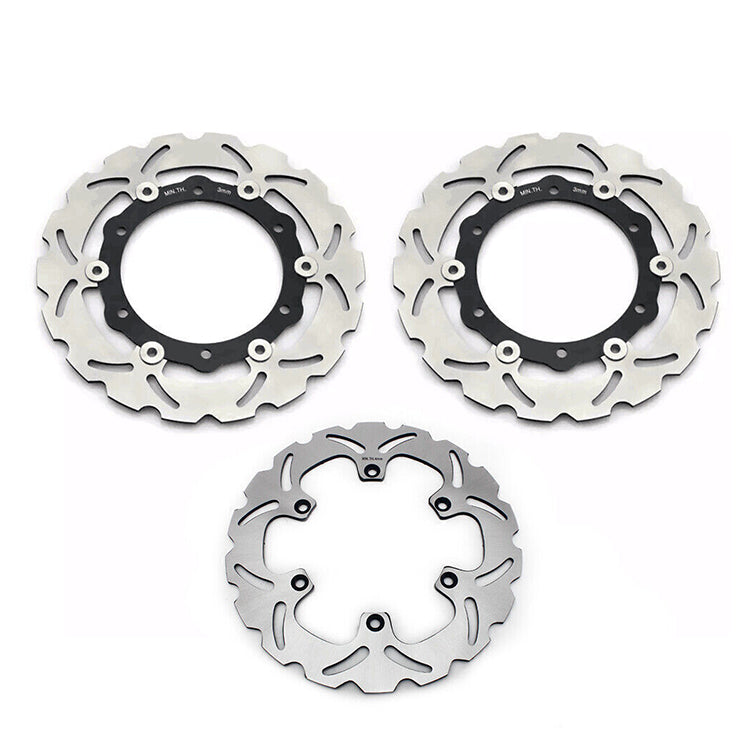

For Yamaha XP500 TMAX 500 / TMAX 500 ABS 2008-2011 Front Rear Brake Disc Rotors

• Fit for:
  Yamaha XP T-MAX 500 2008-2011;
  Yamaha XP T-MAX ABS 500 2008-2011.
• Racing performance 420 (2Cr13 ) stainless steel material & CNC 6061 aluminium alloy centre hub to provide strong and reliable braking power.

• Heat treatment braking surface to ensure brake area not warped.
• Wave design, light weight & good heat dissipation.
• The slotting on the brake surface ensure water and dirt are dispersed quickly.
• Direct replacements, easy to install.

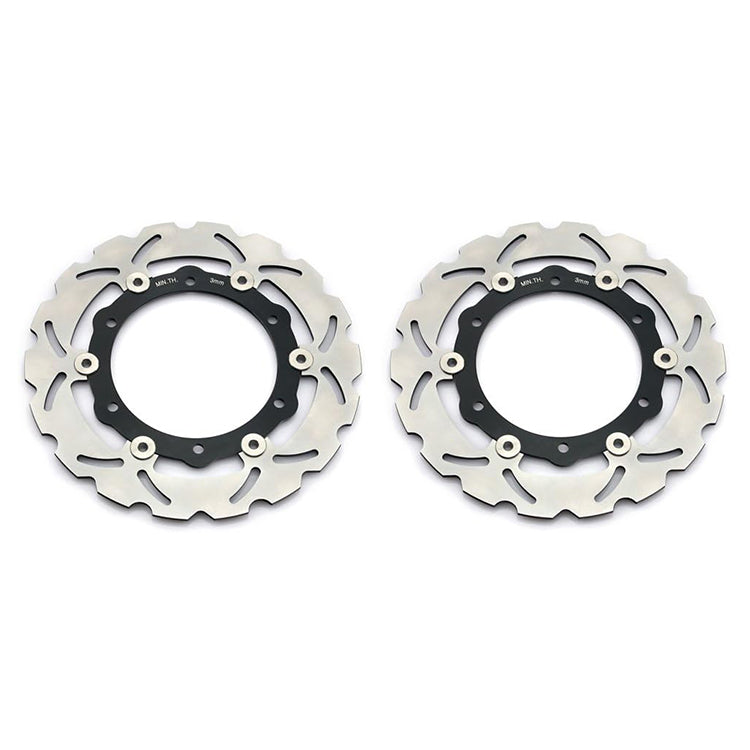

Front Brake Disc
Outer diameter: 267mm
Inner diameter: 132mm
Thickness: 4mm
No of holes 6
Hole size: 8.5mm
Hole spacing: 150mm

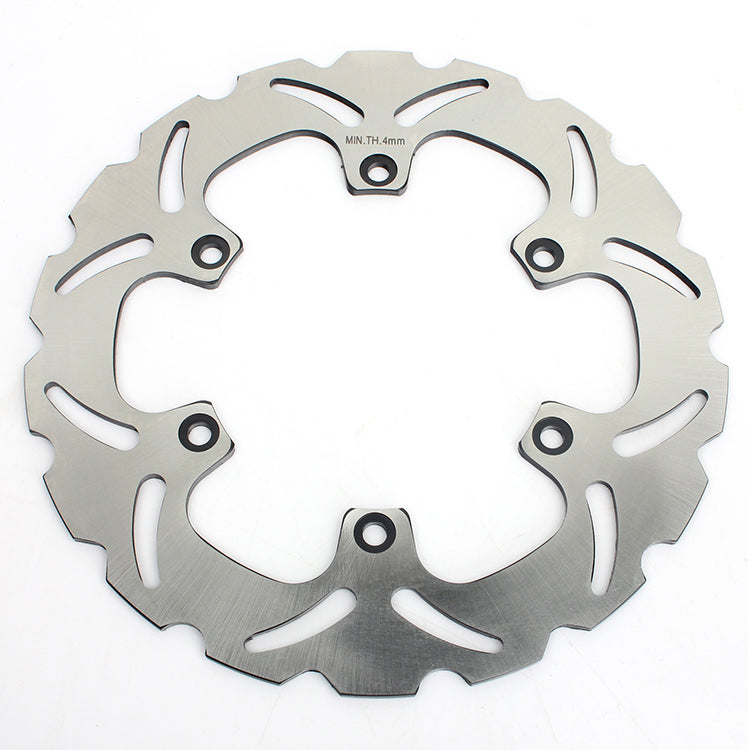

Rear Brake Disc
Outer diameter: 267mm
Inner diameter: 132mm
Thickness: 5mm
No of holes 6
Hole size: 8.4mm
Hole spacing: 150mm
