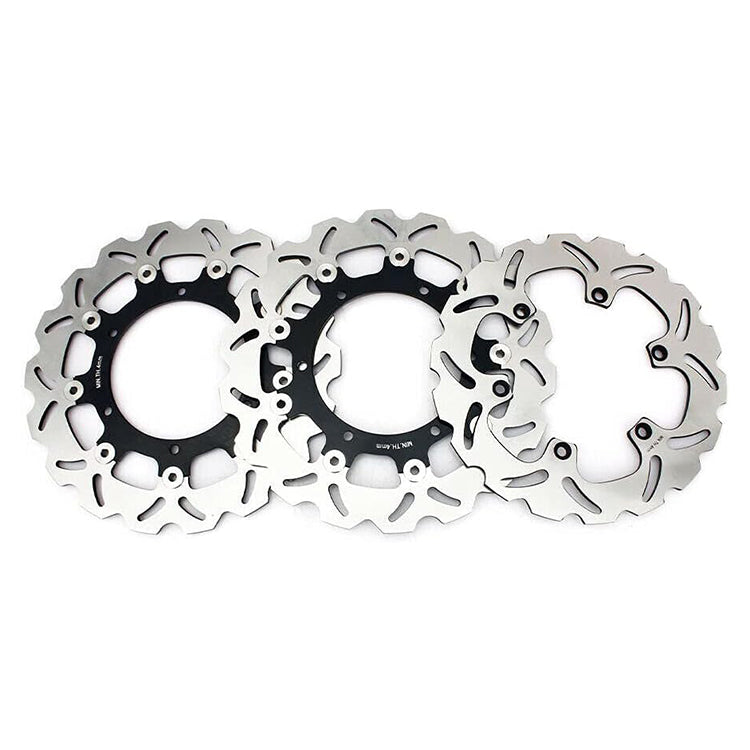

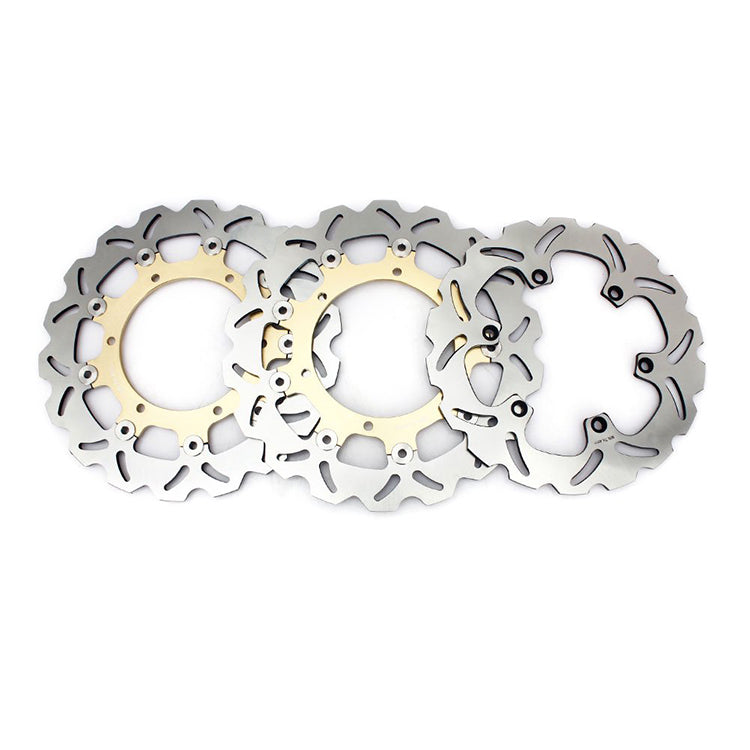

For Yamaha FZ1 Fazer FZS1000 Fazer 2001-2006 / BT1100 Bulldog 2002-2006 / XJR1300 1999-2017 Front Rear Brake Disc Rotors

• Fit for:
  Yamaha FZ1 S F/Disc 298 OD S RN16 e13*0040 2001-2006;
  Yamaha FZ1 Fazer Europe RN16 e13*0040 2001-2005;
  Yamaha BT Bulldog (RP05/e1/00116) 1100CC model year 2002-2006;
  Yamaha FZS Fazer (RN06/e1/0103) 1000CC model year 2001-2005;
  Yamaha XJR (RP02/K266) 1300CC model year 1999-2001;
  Yamaha XJR (RP06/e1/0134) 1300CC model year 2002-2017.
• Stainless steel 420 (2Cr13) & aluminum T6061 material provide outstanding braking performance.

• Heat treatment to ensure brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimizing warping and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

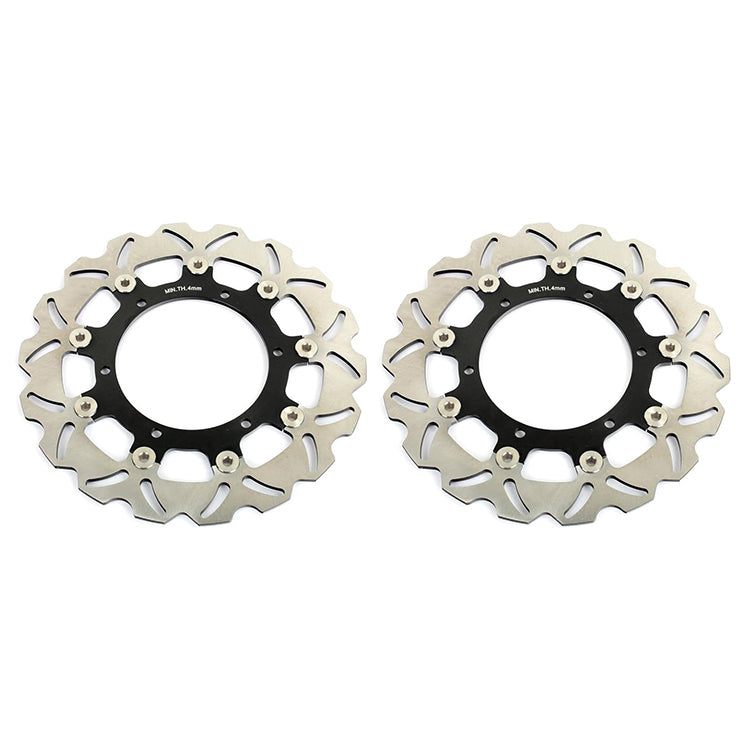

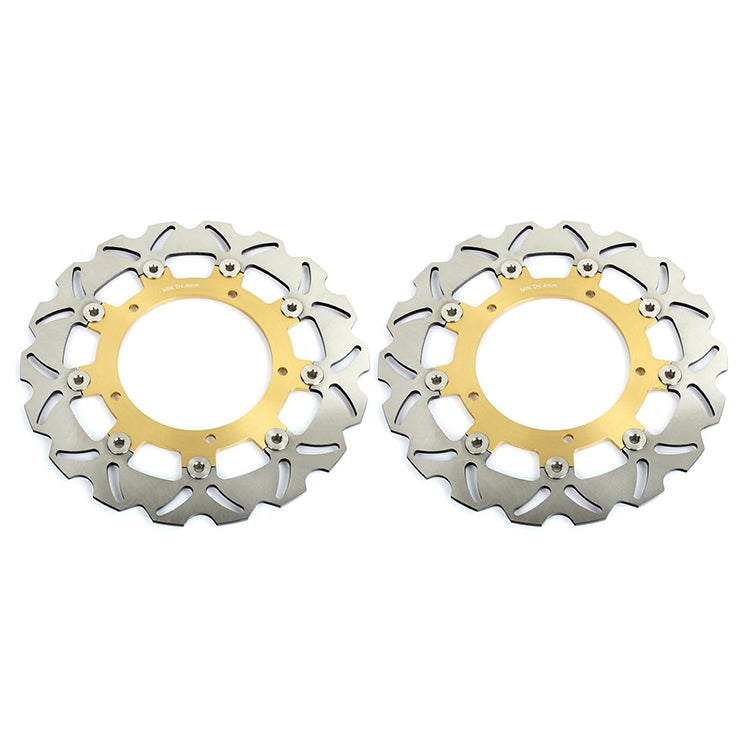

Front Brake Disc
Outer diameter 300mm
Inner diameter 132mm
Thickness 5mm
No of holes 6
Hole size 8.4mm
Hole spacing 150mm

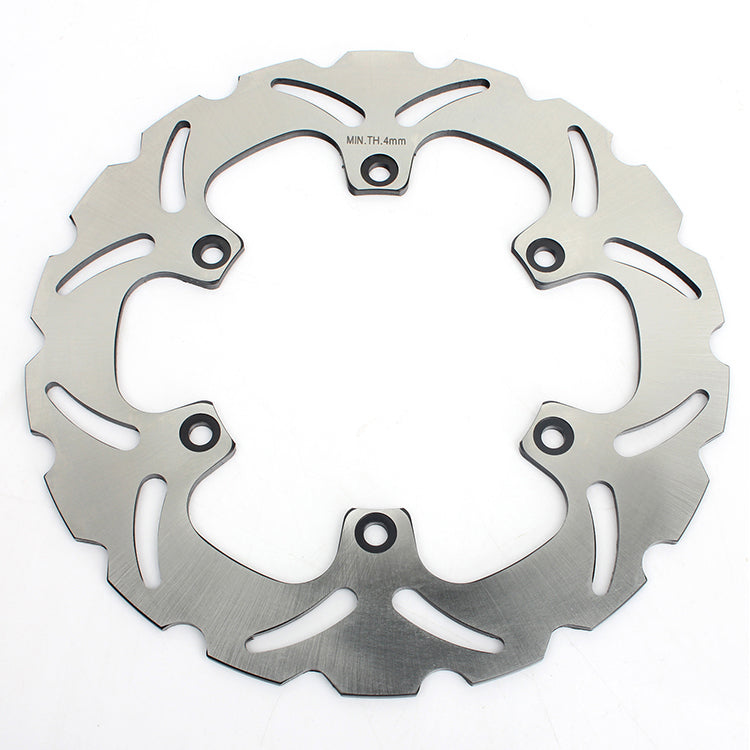

Rear Brake Disc
Outer diameter 267mm
Inner diameter 132mm
Thickness 5mm
No of holes 6
Hole size 8.4mm
Hole spacing 150mm
