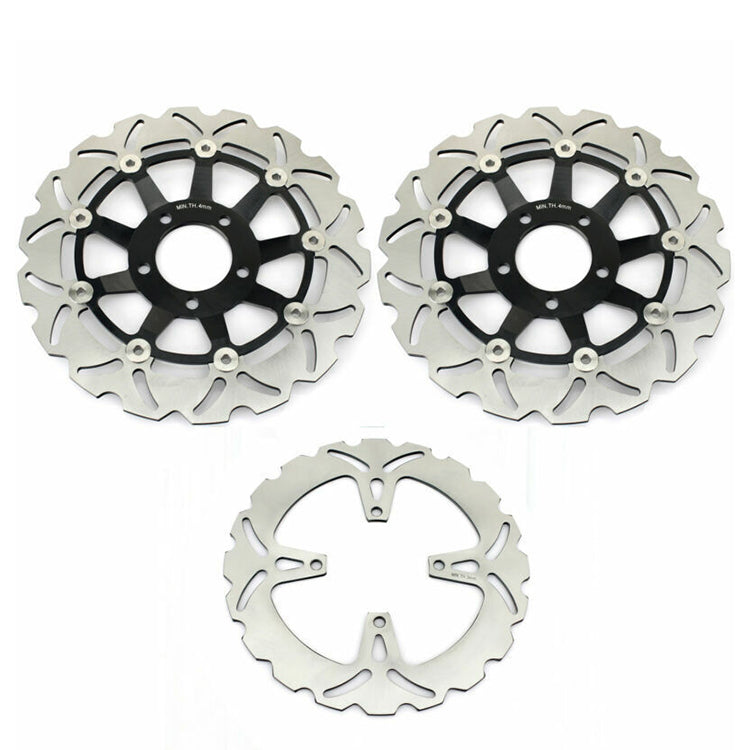

For Suzuki GSX600F / GSX750F 1989-1997 / GSF400 Bandit 1989-1994 Front Rear Brake Disc Rotors

• Fit for:
  Suzuki GSX F 600CC model year 1989;
  Suzuki GSX F 600CC model year 1990-1997;
  Suzuki GSF 400 Bandit K GK75B 1989;
  Suzuki twin front discs GSF 400 Bandit P,R GK75B F610 1993 1994;
  Suzuki GSF 400 Bandit N NK GK75A 1989;
  Suzuki GSF 400 Bandit N NP GK75A 1993;
  Suzuki GSF 400 Bandit V VM,VP,VR GK75A 1991-1994;
  Suzuki GSF 400 Bandit VZ VZM GK75A 1991;
  Suzuki GSF 400 Bandit VZ VZR,VZP GK75A 1993-1994;
  Suzuki GSX F 750CC FK-FP,FR-FV model year 1989-1997;
  Suzuki GSX 750CC model year 1989-1992;
  Suzuki GSX 400 F FJ,FK,FL GK74A 1988-1990;
  Suzuki GSX400 Impulse (Japan) R,S,T X Front 1994-1996 1999 2005;
  Suzuki GSX400 Impulse X ，X K5 GK79A 1999 2005;
  Suzuki GSX 400 Impulse Z R,S,T GK79A 1994-1996;
  Suzuki GSX400 SS N Katana Front 1992.
• Stainless steel 420 2Cr13and aluminum 6061 T6 material ensure durable braking power.
• Heat treatment to ensure brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

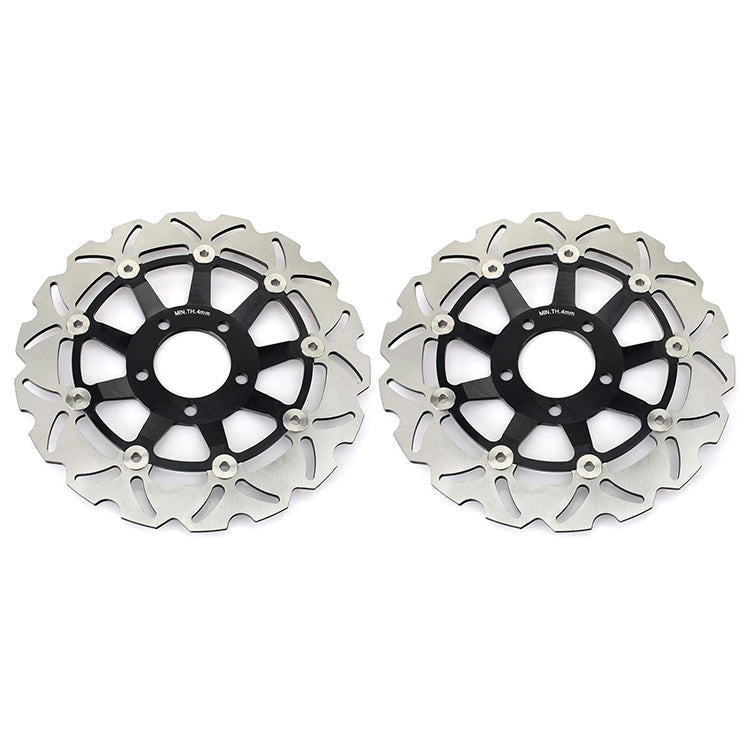

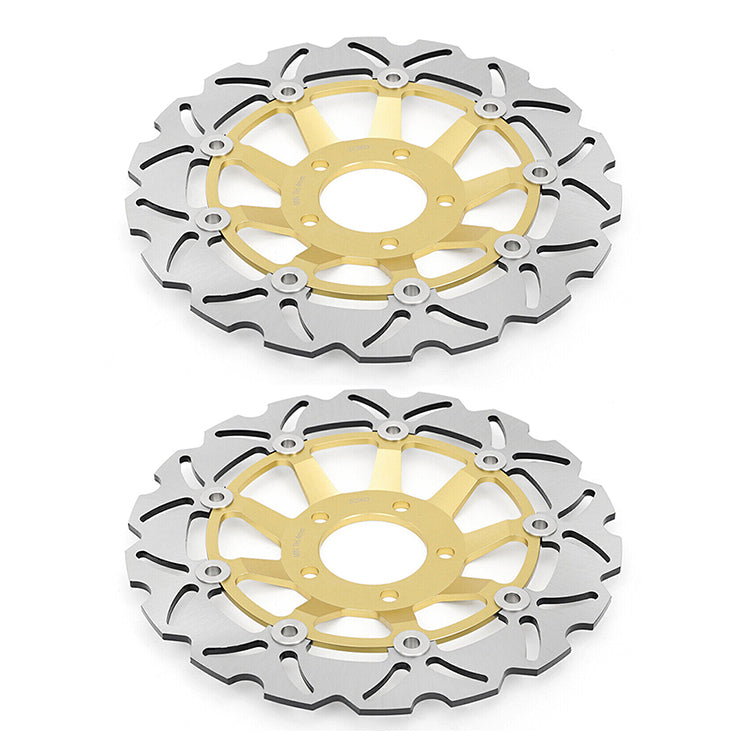

Front Brake Disc
Outer diameter: 290mm
Inner diameter: 64mm
Thickness: 5mm
No of holes: 5
Hole size: 10.4mm
Hole spacing: 86mm

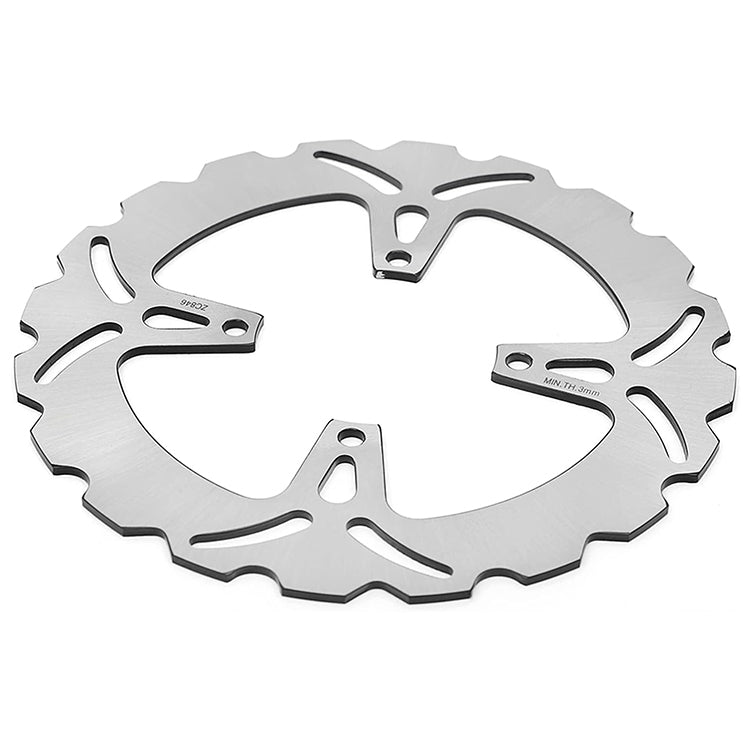

Rear Brake Disc
Outer diameter: 250mm
Inner diameter: 84mm
Thickness: 4mm
No of holes: 4
Hole size: 8.4mm
Hole spacing: 100mm
