For Suzuki GSX600F 1998-2003 / GSX750F 1998-2003 / RF400R 1993-1997 / RF600R 1993-1998 Front Rear Brake Disc Rotors

• Fit for:
  Suzuki GSF Bandit (GN77B/H008) 600CC model year 1995-1999;
  Suzuki GSF Bandit (WVA8/e4/0060) 600CC model year 2000-2004;
  Suzuki GSF Bandit S S,T,V,W,X GN77B 600CC model year 1994-1999;
  Suzuki GSF Bandit S SY,K1-K4 WVA8 600CC model year 2000-2004;
  Suzuki GSX F 600CC model year 1998-2003;
  Suzuki RF R (GN76B/G319) 600CC model year 1993-1998;
  Suzuki SV-S (AV/K329) 650CC model year 1999-2002;
  Suzuki GSX F 750CC model year 1998-2003;
  Suzuki RF400 R P,R,T 1993-1996;
  Suzuki RF 400 RV T,V GK78A GK78A 1996-1997.
• Stainless steel 420 2Cr13and aluminum 6061 T6 material ensure durable braking power.
• Heat treatment to ensure brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

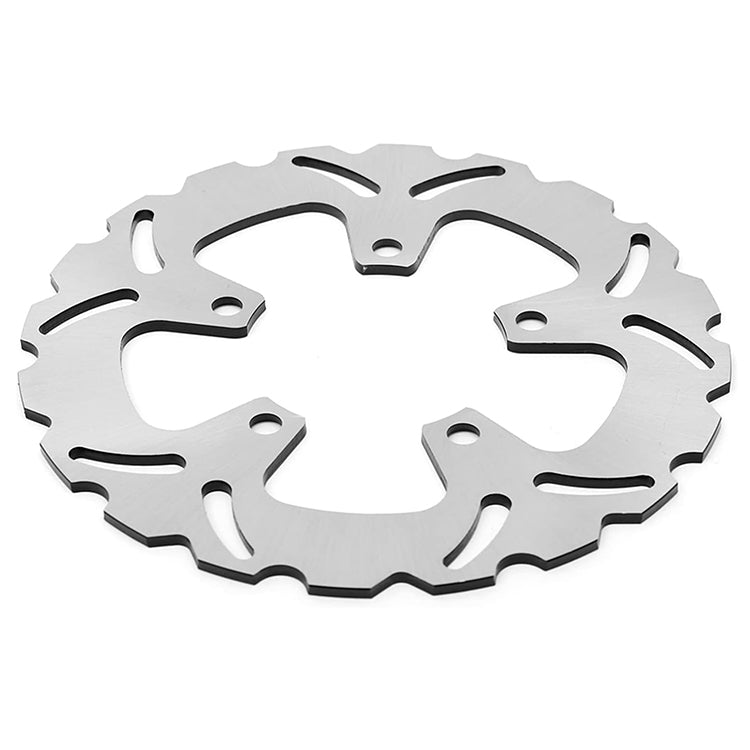

Front Brake Disc
Outer diameter: 290mm
Inner diameter: 64mm
Thickness: 5mm
No of holes: 5
Hole size: 10.4mm
Hole spacing: 86mm

Rear Brake Disc
Outer diameter: 240mm
Inner diameter: 89mm
Thickness: 5mm
No of holes: 5
Hole size: 10.4mm
Hole spacing: 110mm
