For Suzuki GSF650 GSF650S Bandit 2007-2012 / GSF650 Bandit ABS 2011-2014 / GSF650S Bandit ABS 2008-2017 Front Rear Brake Disc Rotors

• Fit for:
  Suzuki GSR 400CC model year 2006-2008;
  Suzuki GSR 600CC K6-K9 WVB9 model year 2006-2011;
  Suzuki GSR ABS 600CC AK7-AK9,AL0 WVB9 model year 2007-2011;
  Suzuki GSF BANDIT 650 2007-2012;
  Suzuki GSF BANDIT 650 ABS 2011-2014;
  Suzuki GSF 650 Bandit S SK7-SK9 2007-2012;
  Suzuki GSF 650 Bandit S ABS SAK7-SAK9,SAL0 2008-2017;
  Suzuki GSX F 650CC model year 2008-2013;
  Suzuki GSX FA ABS 650CC model year 2008-2017;
  Suzuki GSR 750CC L1 2011-;
  Suzuki GSR ABS 750CC 2011-2017;
  Suzuki GSF1200 A-K6 Bandit ABS 2006;
  Suzuki GSF1200 K6 Bandit 2006;
  Suzuki GSF 1200 S SK6 WVCB Bandit 2006;
  Suzuki GSF1200 ABS AK6 WVCB Bandit 2006;
  Suzuki GSF 1200 S ABS SAK6 WVCB Bandit 2005-2006;
  Suzuki GSF BANDIT 1250CC model year 2007-2012;
  Suzuki GSF BANDIT S 1250CC model year 2007-2012;
  Suzuki GSX FA 1250CC model year 2010-UP;
  Suzuki GSX FA 1250CC ABS model year 2010-UP;
  Suzuki GSX 1250 ST Traveller FAL0ST,FAL1ST WVCH model year 2009-2014;
  Suzuki GSX 650F F WVCJ e4*1342 2008-2013;
  Suzuki GSX 650F FA ABS WVCJ e4*1342 2008-up.
• Stainless steel 420 2Cr13and aluminum 6061 T6 material ensure durable braking power.
• Heat treatment to ensure brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

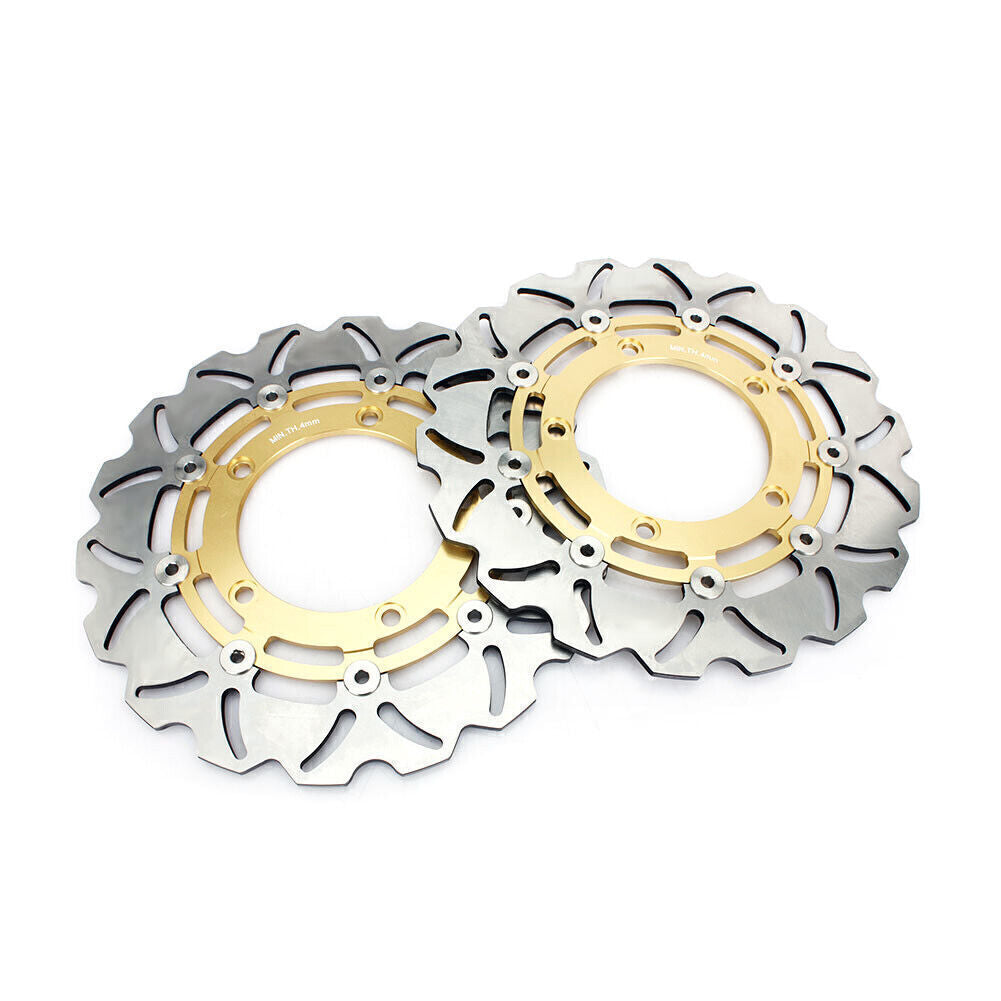

Front Brake Rotor
Outer diameter: 310mm
Inner diameter: 121.5mm
Thickness: 5mm
No of holes: 5
Hole size: 10.4mm
Hole spacing:142mm

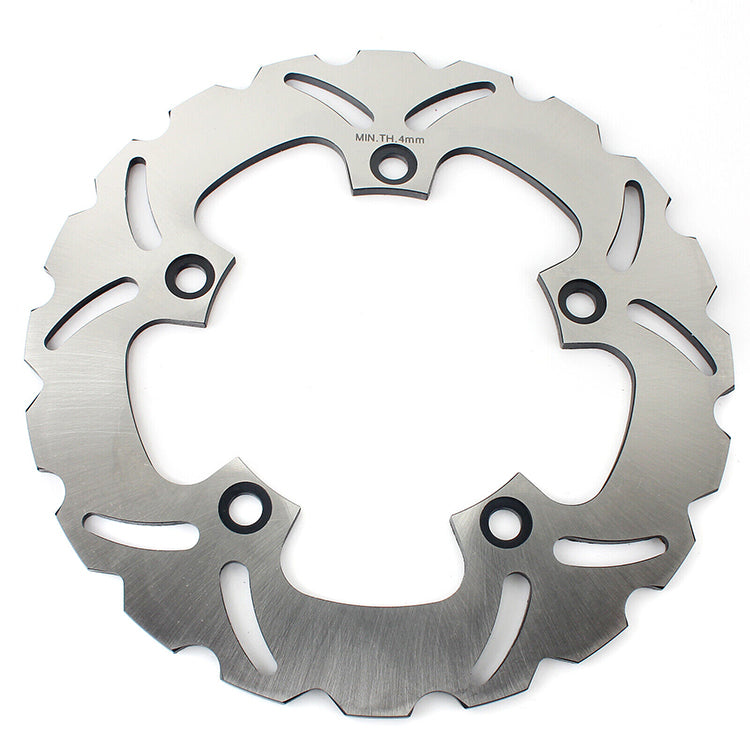

Rear Brake Rotor
Outer diameter: 240mm
Inner diameter: 120.5mm
Thickness: 5mm
No of holes: 5
Hole size: 10.5mm
Hole spacing:141mm
