For Suzuki GSF1200 Bandit / GSF1200S Bandit 1995-2005 / GSX1200 Inazuma 1999-2002 Front Rear Brake Disc Rotors

• Fit for:
  Suzuki RF RR,RS,RS2,RT,RV,RW (GT73B/G616) 900CC model year 1994-1999;
  Suzuki GSF Bandit 1200CC model year 1995-2000;
  Suzuki GSF Bandit S 1200CC model year 1995-2000;
  Suzuki GSF Bandit S 1200CC model year 2001-2005;
  Suzuki GSF Bandit (WVA9/e4/0086) 1200CC model year 2001-2002;
  Suzuki GSF Bandit 1200CC model year 2003-2005;
  Suzuki GSX Inazuma 1999-2002 ( GSX 1200 FS Inazuma FSW,FSX- A3 1998-2002 );
  Suzuki GS SS K1 K2 1200CC 2001-2002;
  Suzuki GS 1200 Z K1 GV78A 2001.
• Stainless steel 420 2Cr13and aluminum 6061 T6 material ensure durable braking power.
• Heat treatment to ensure brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

Front Brake Disc
Outer diameter: 310mm
Inner diameter: 64mm
Thickness: 5mm
No of Holes: 5
Hole size: 10.4mm
Hole spacing: 86mm

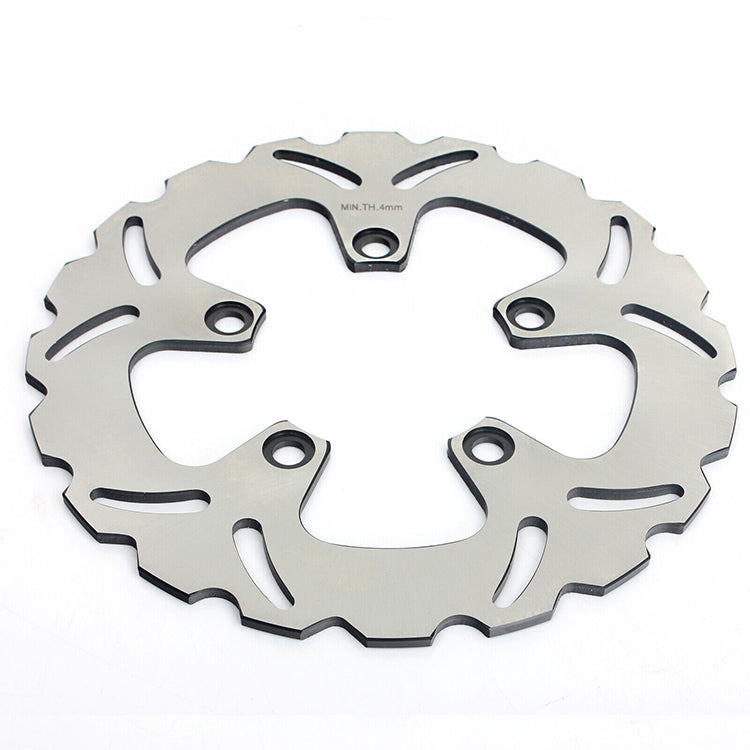

Rear Brake Disc
Outer diameter: 240mm
Inner diameter: 89mm
Thickness: 5mm
No of Holes: 5
Hole size: 10.4mm
Hole spacing: 110mm
