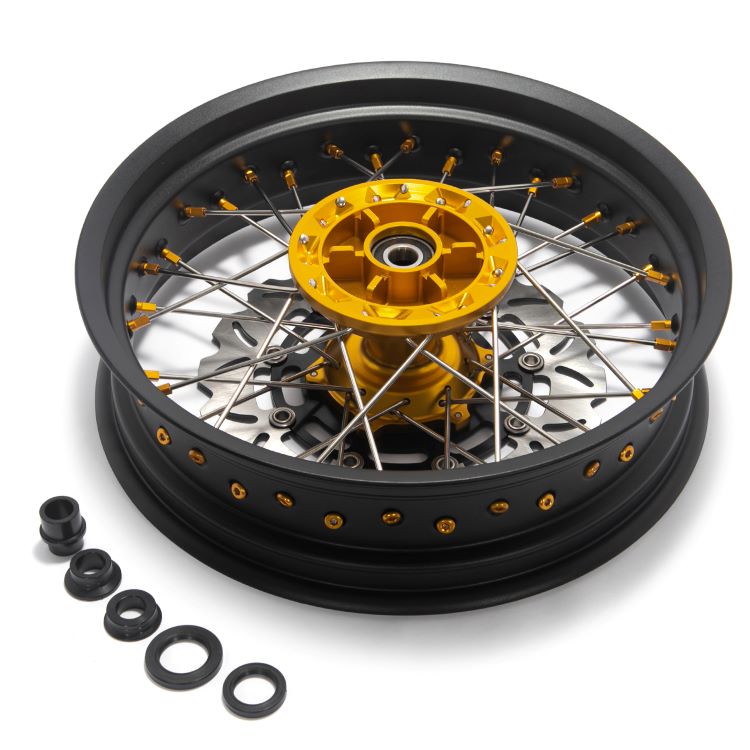

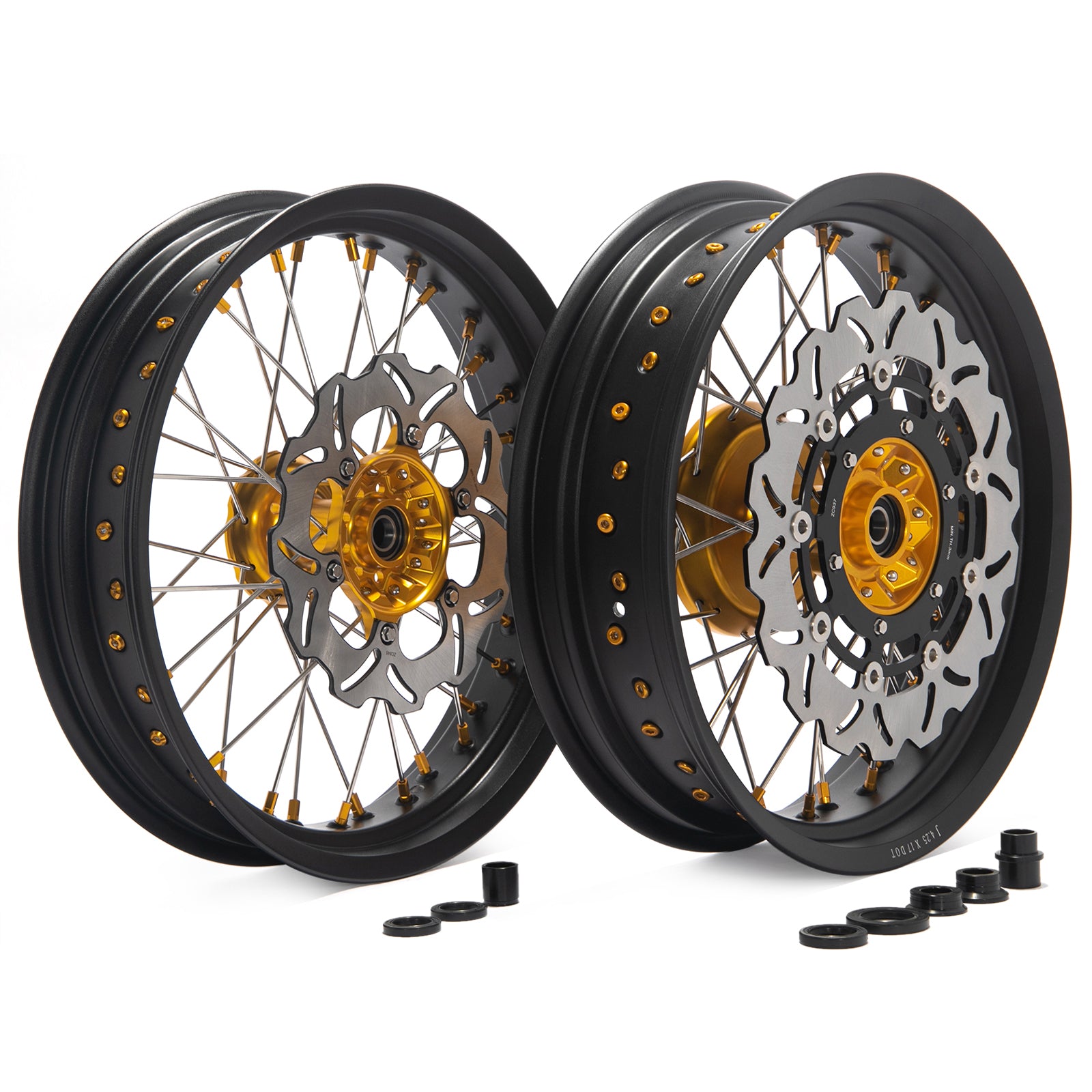

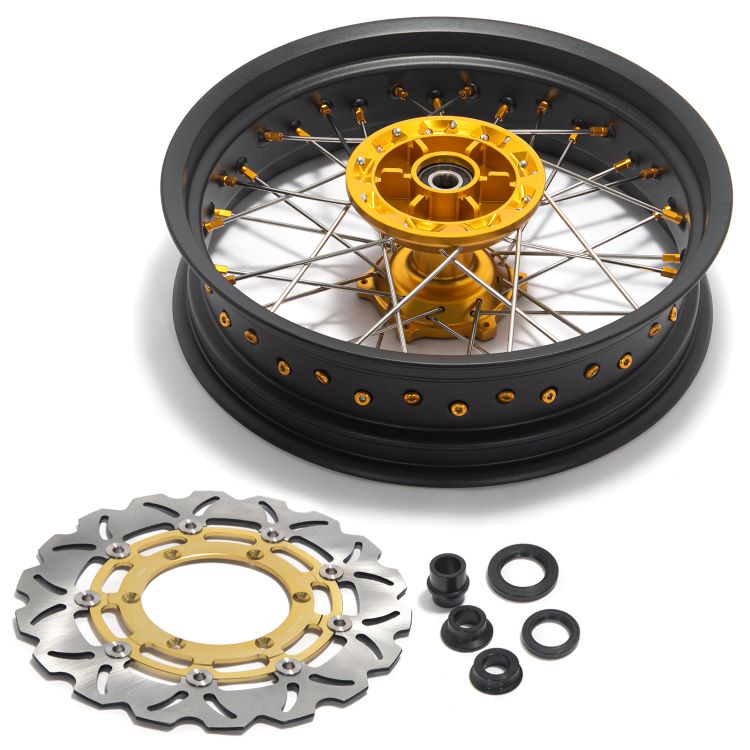

For Suzuki DRZ400SM SuperMotard 2005-UP Aluminum 17"Front Rear Wheel Rim Hub Rotor Set

Fitment: Suzki DRZ SM 400CC SuperMotard SMK5-SMK9, SML0 2005-UP

• Rims made from 7000 series aluminum, stronger and lighter than the other rims, three-stage heat treatment process for the highest strength.
• Billet aircraft aluminum alloy 6061 material hub, T6 standard heated treatment, aircraft lighter material and heated treatment ensure the material have highest density and highest strength.
• High performance than cheap casting hubs. All hubs CNC milled with 5 axles CNC machines.
• Stainless Steel nipples and spokes to gain the strongest and lightest wheel combination. Excellent tensile strength, which prevents stretching. All the spokes passed tension test with better elasticity.
• All wheel sets have been tested, guaranteeing the best in quality and performance.
• The front brake disc is available in two colors to choose from.

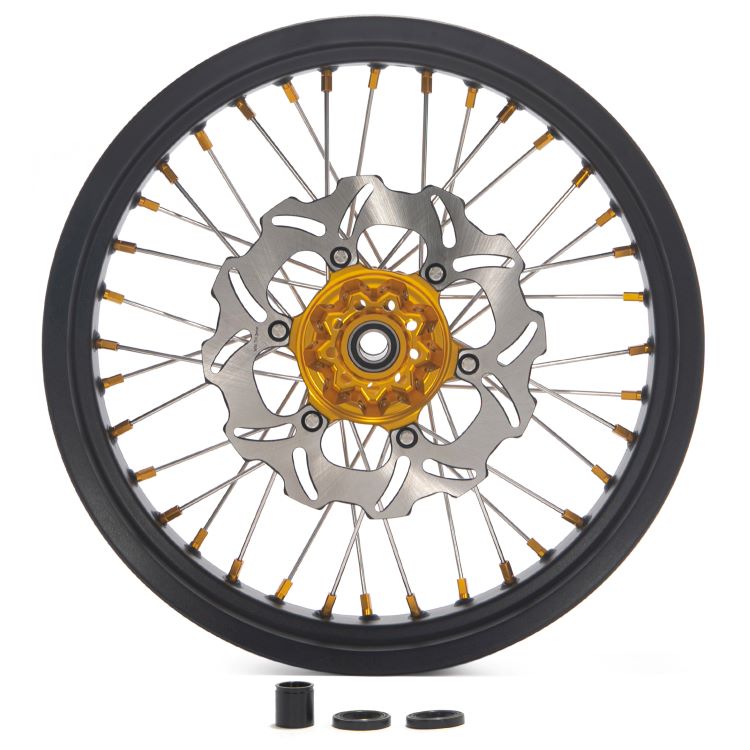

Front Wheel= 3.5" X 17" 36 holes with 20mm wheel axle spacers

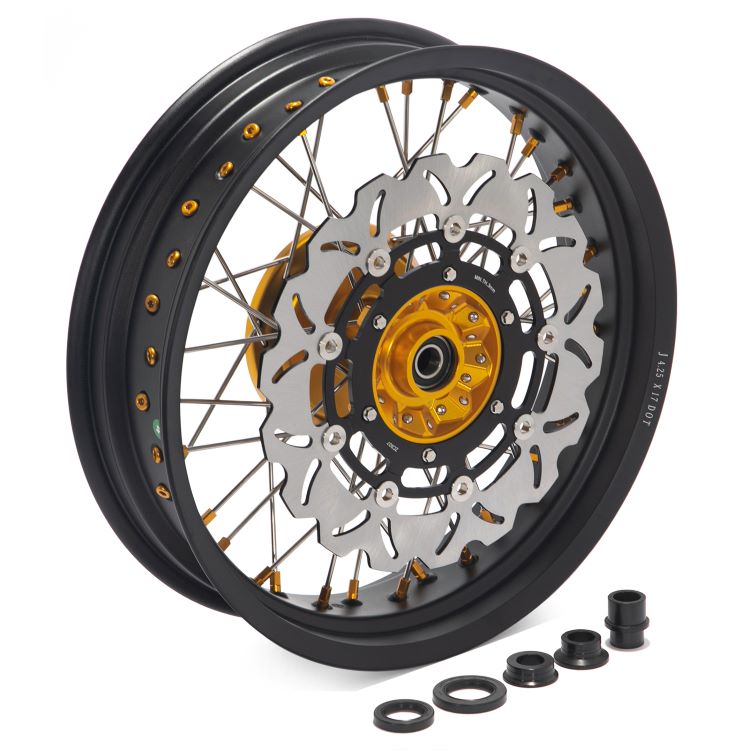

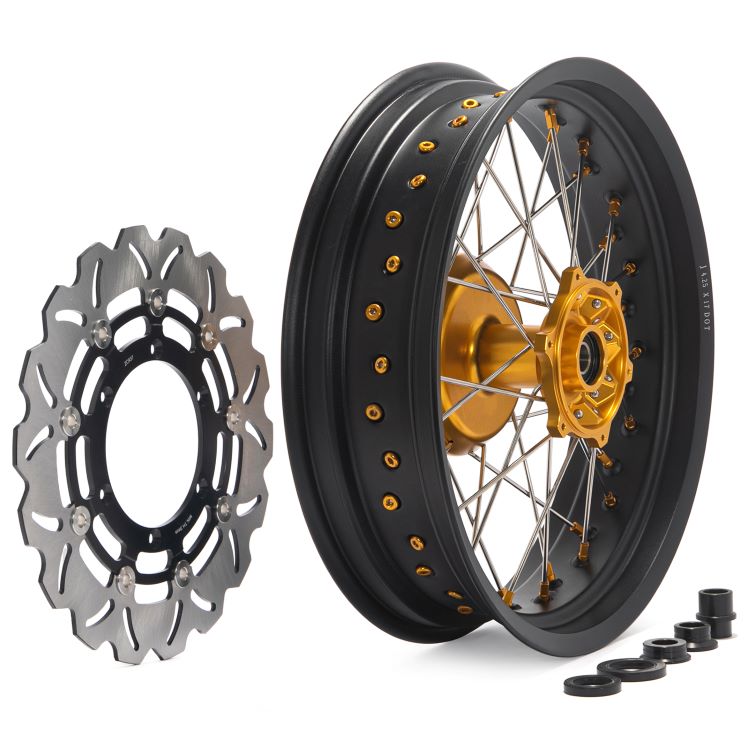

Rear Wheel= 4.25" X 17" 36 holes with 20mm wheel axle spacers

Front Brake Disc
Outer diameter 310mm
Inner diameter 118mm
Thickness 4mm
Hole quantity: 6
Hole size 6.2mm
Hole spacing 134mm

Rear Brake Disc
Outer diameter 240mm
Inner diameter 118m
Thickness 4mm
Hole quantity 6
Hole size 6.4mm
Hole spacing 134mm
