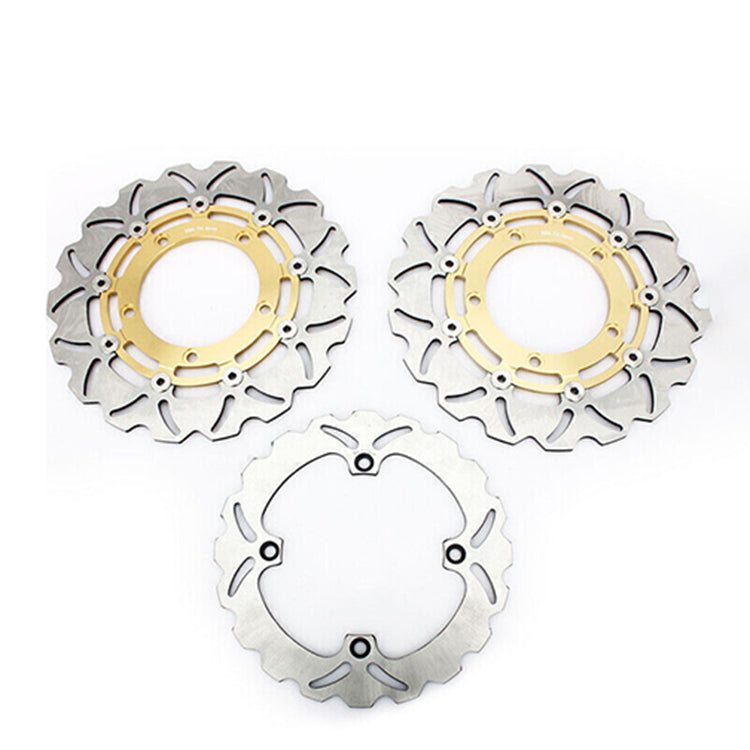

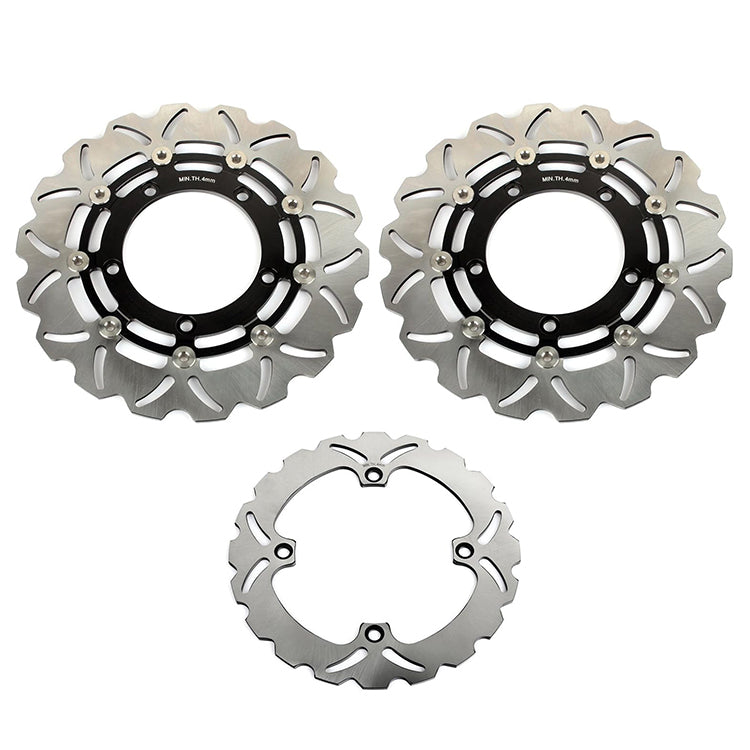

For Suzuki DL650 V Strom 2007-2012 / DL650 V Strom ABS 2007-up Front Rear Brake Disc Rotors

• Fit for:
  Suzuki DL V-STROM 650CC K7-K9,L0-L3 model year 2007-2012;
  Suzuki DL V-Strom ABS 650CC AK7-AK9,AL0-AL3 2007-up;
  Suzuki DL 650 V-Strom ABS AL1-AL2 C7 2011-2012;
  Suzuki DL 650 V-Strom Traveller K9GT,L0GT-L2GT WVB1 2007-2012;
  Suzuki DL 650 V-Strom Traveller ABS AK9GT,AL0GT-AL2GT WVB1 2007-2012;
  Suzuki DL 650 V-Strom X XK7-XK9,XL0-XL2 WVB1 2007-2012;
  Suzuki DL 650 V-Strom Xpedition AL1XP-AL2XP WVB1 2011-2012.
• Stainless steel 420 2Cr13and aluminum 6061 T6 material ensure durable braking power.
• Heat treatment to ensure brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

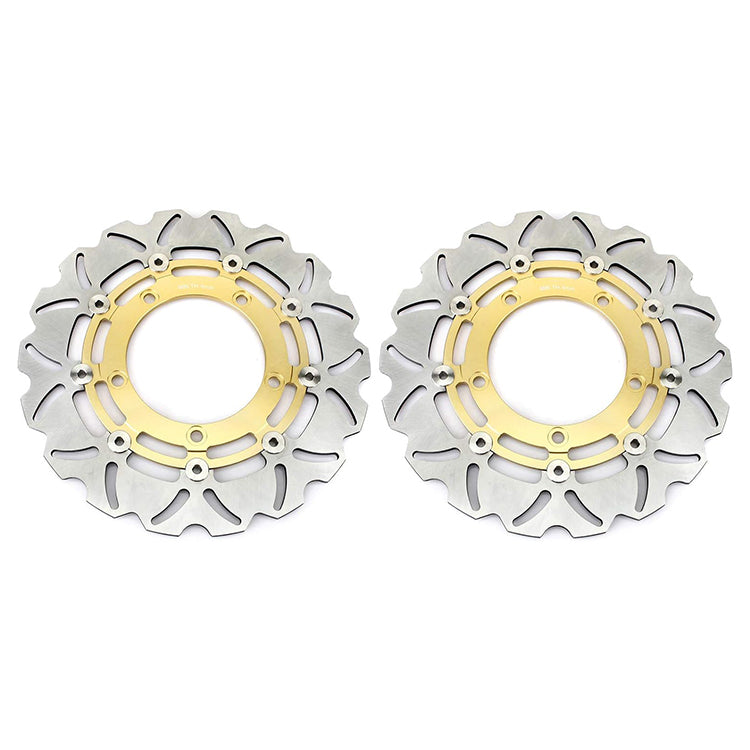

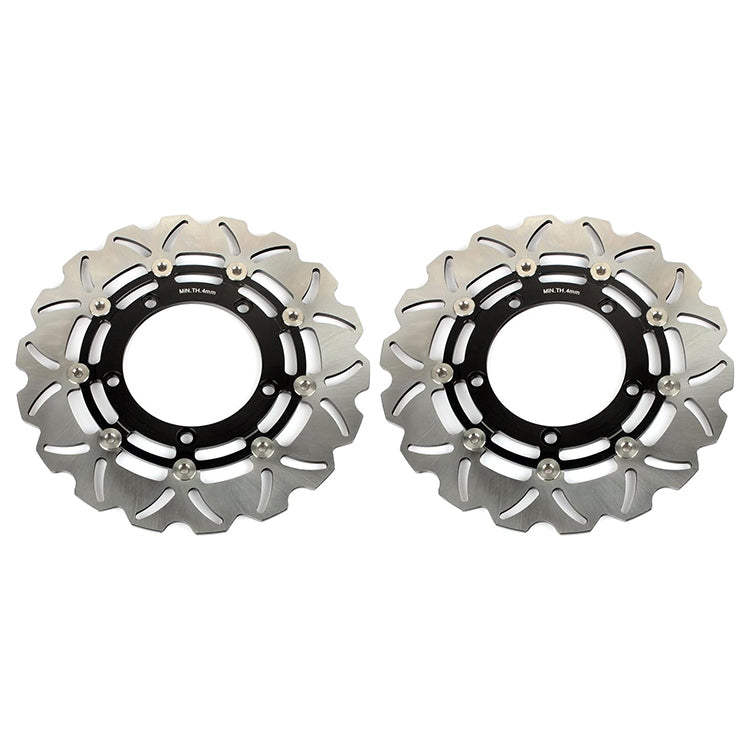

Front Brake Rotor
Outer diameter: 310mm
Inner diameter: 121.5mm
Thickness: 5mm
No of holes: 5
Hole size: 10.4mm
Hole spacing:142mm

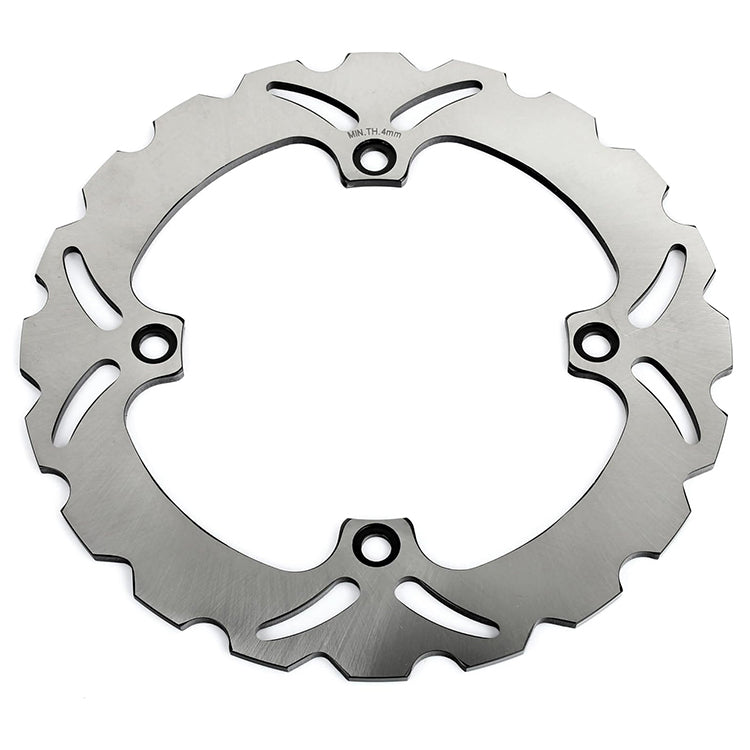

Rear Brake Rotor
Outer diameter: 260mm
Inner diameter: 141mm
Thickness: 5mm
No of holes: 4
Hole size: 10.4mm
Hole spacing: 162mm
