For Suzuki DL650 V-Strom 2004-2006 / DL1000 V-Strom 2002-2013 / Kawasaki KLV1000 2004-2007 Front Rear Brake Disc Rotors

• Fit for:
  Kawasaki KLV 1000CC model year 2004-2007;
  Suzuki DL V-STROM 650CC model year 2004-2006;
  Suzuki DL V-STROM 1000CC K2-K9,L0,L1,L2 model year 2002-2013.
• Stainless steel 420 2Cr13and aluminum 6061 T6 material ensure durable braking power.
• Heat treatment to ensure brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

Front Brake Disc
Outer diameter 310mm
Inner diameter 69mm
Thickness 5mm
No of holes 5
Hole size 10.4mm
Hole spacing 91mm

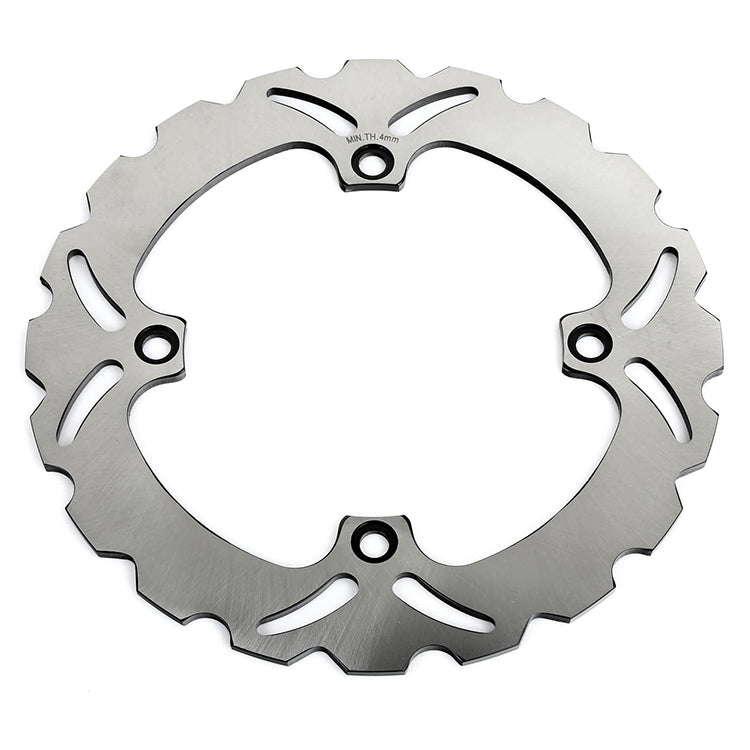

Rear Brake Disc
Outer diameter 260mm
Inner diameter 141mm
Thickness 5mm
No of holes 4
Hole size 10.4mm
Hole spacing 162mm
