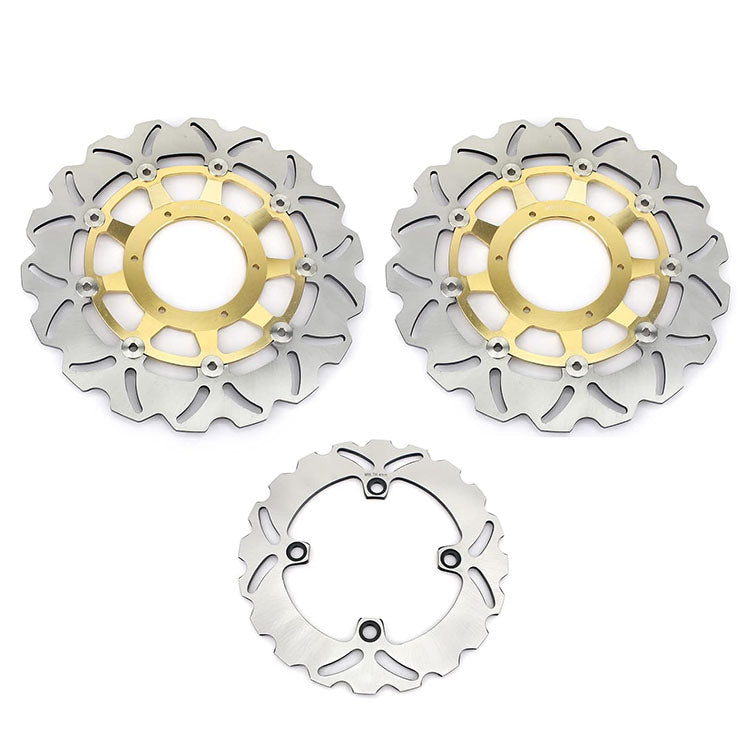

For Honda CBR600RR PC40 2003-and up / CBR1000RR SC57 2004-2005 Front Rear Brake Disc Rotors

• Fit for:
  Honda CBR RR RR3,RR4 (PC37/e4/0190) 600CC model year 2003-2004;
  Honda CBR RR RR5,RR6 RR7-RR9,RRA,RRB 600CC model year 2005-and up;
  Honda CBR RR PC40 600CC model year 2009-2014;
  Honda CBR 600 RR Hannspree 2008;
  Honda CBR RR (SC57/e4/0269) RR4,RR5 1000CC model year 2004-2005.
• Stainless steel 420 (2Cr13) & aluminum T6061 material provide outstanding braking performance.

• Heat treatment to ensure brake area not warped.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimizing warping and ensuring rotor longevity.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

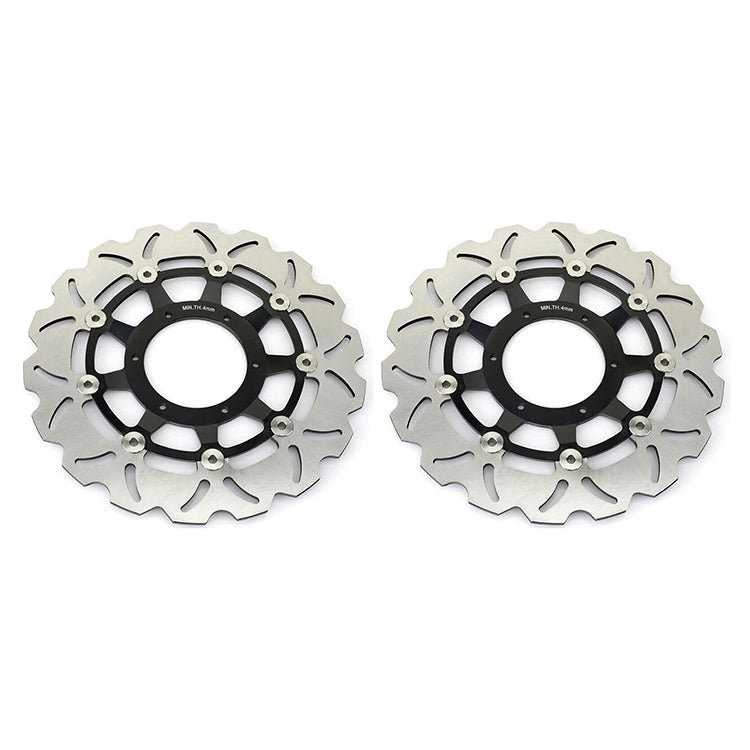

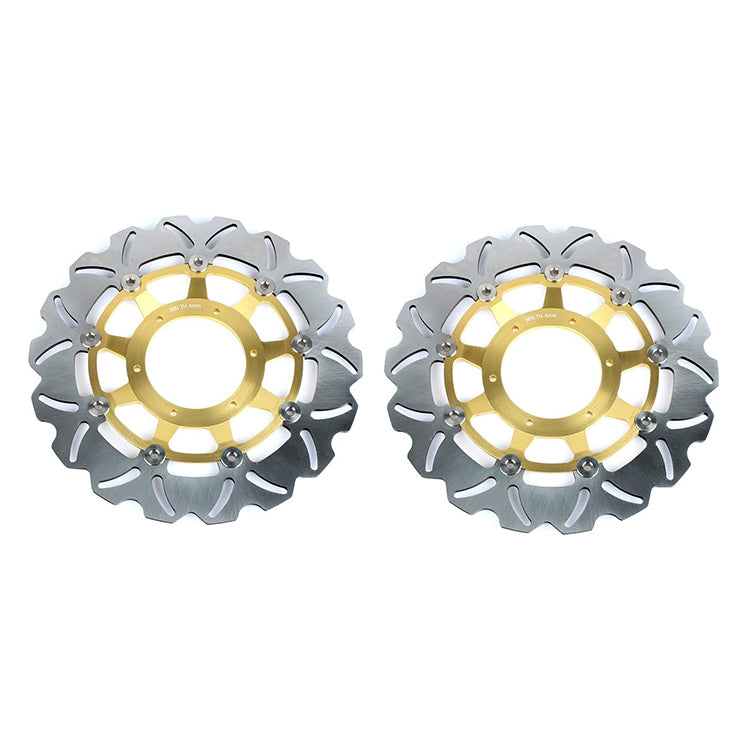

Front Brake Disc
Outer diameter 310mm
Inner diameter 94mm
Thickness 5mm
No of holes 6
Hole size 6.2mm
Hole spacing 110mm

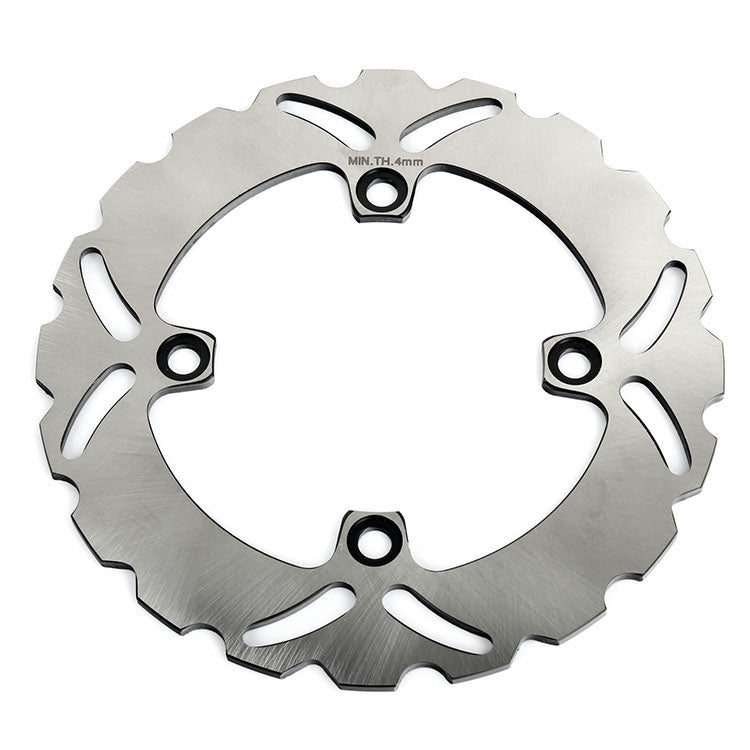

Rear Brake Disc
Outer diameter 220mm
Inner diameter 105mm
Thickness 5mm
No of holes 4
Hole size 10.4mm
Hole spacing 125mm
