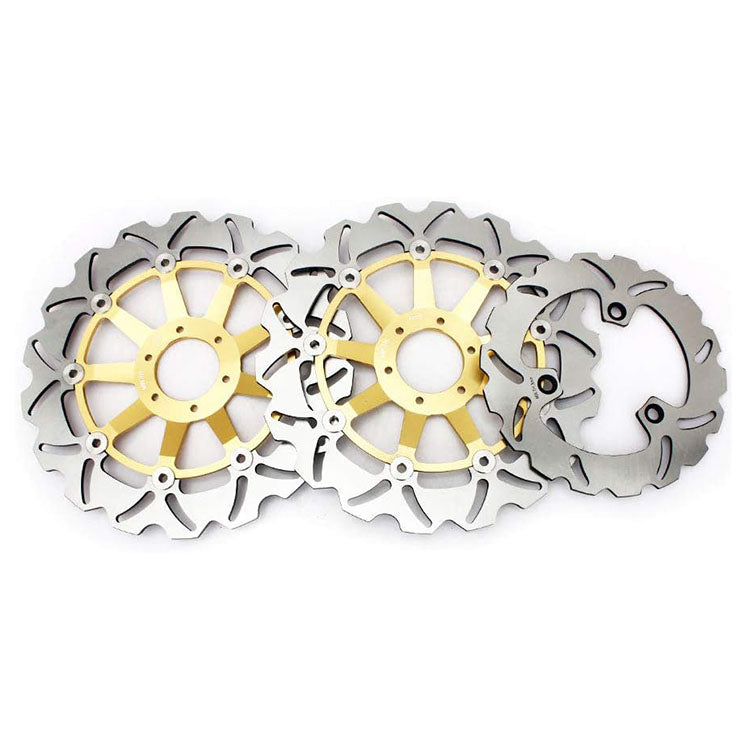

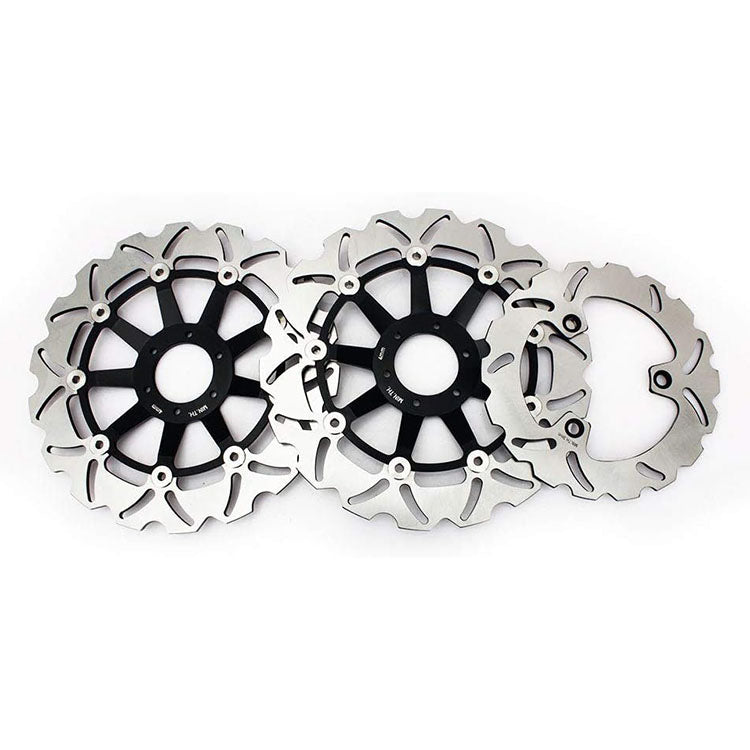

For Honda CBR400RR NC23 1988-1989 / CBR400 RGYA 1986 Front Rear Brake Disc Rotors

• Fit for:
  Honda CBR400 RGYA (NC 23) 1986;
  Honda CBR400 RR-J,K Tri-Arm 1988-1989;
  Honda CBR400RR NC23 1988-1989.
• Stainless steel 420 (2Cr13) & aluminum T6061 material to ensure durable braking power,

• Heat treatment to ensure brake area not warped.
• Wave shape rotor, 20% light weight than OEM rotor, good for racing.
• New scraper slot system to keep your brake system clean and run cooler.
• The slotting on the brake surface ensure water and dirt are dispersed quickly, and also reduce weight.
• Replace the original discs exactly and no changes needed.

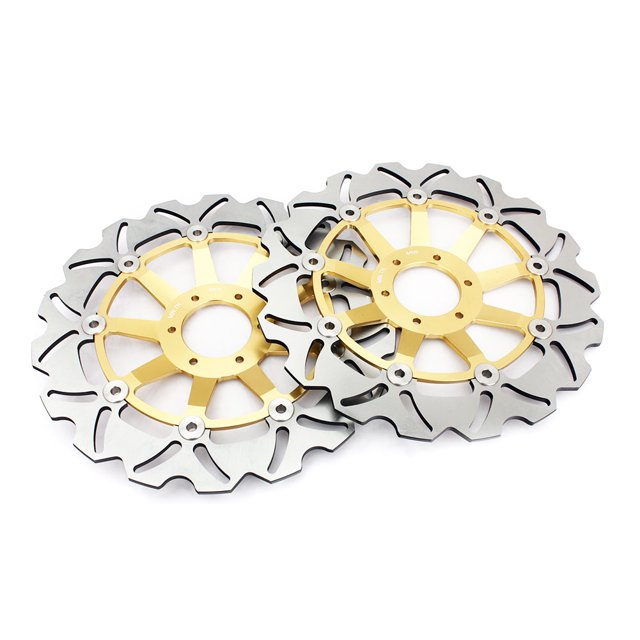

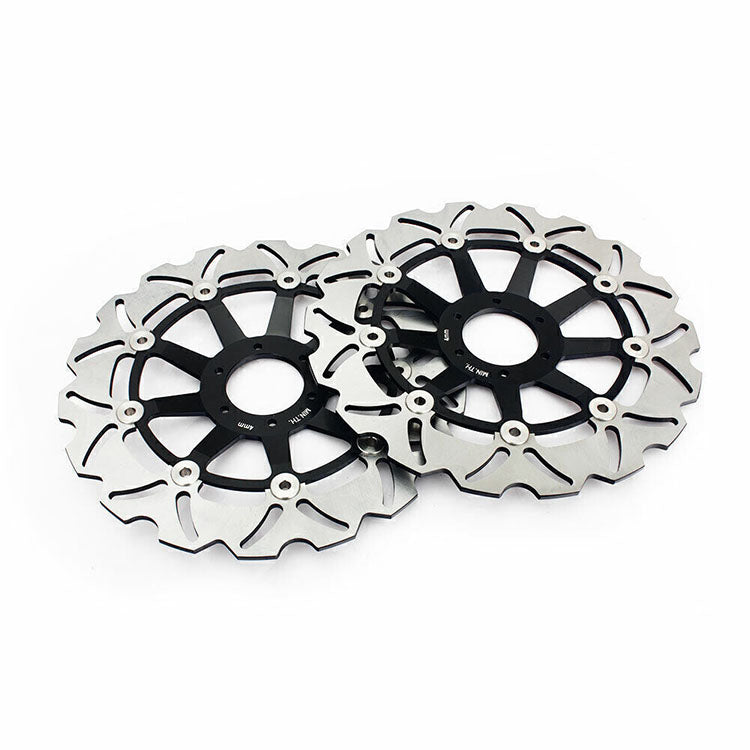

Front Brake Disc
Outer diameter 296mm
Inner diameter 58mm
Thickness 5mm
No of holes 6
Hole size 6.4mm
Hole spacing 74mm

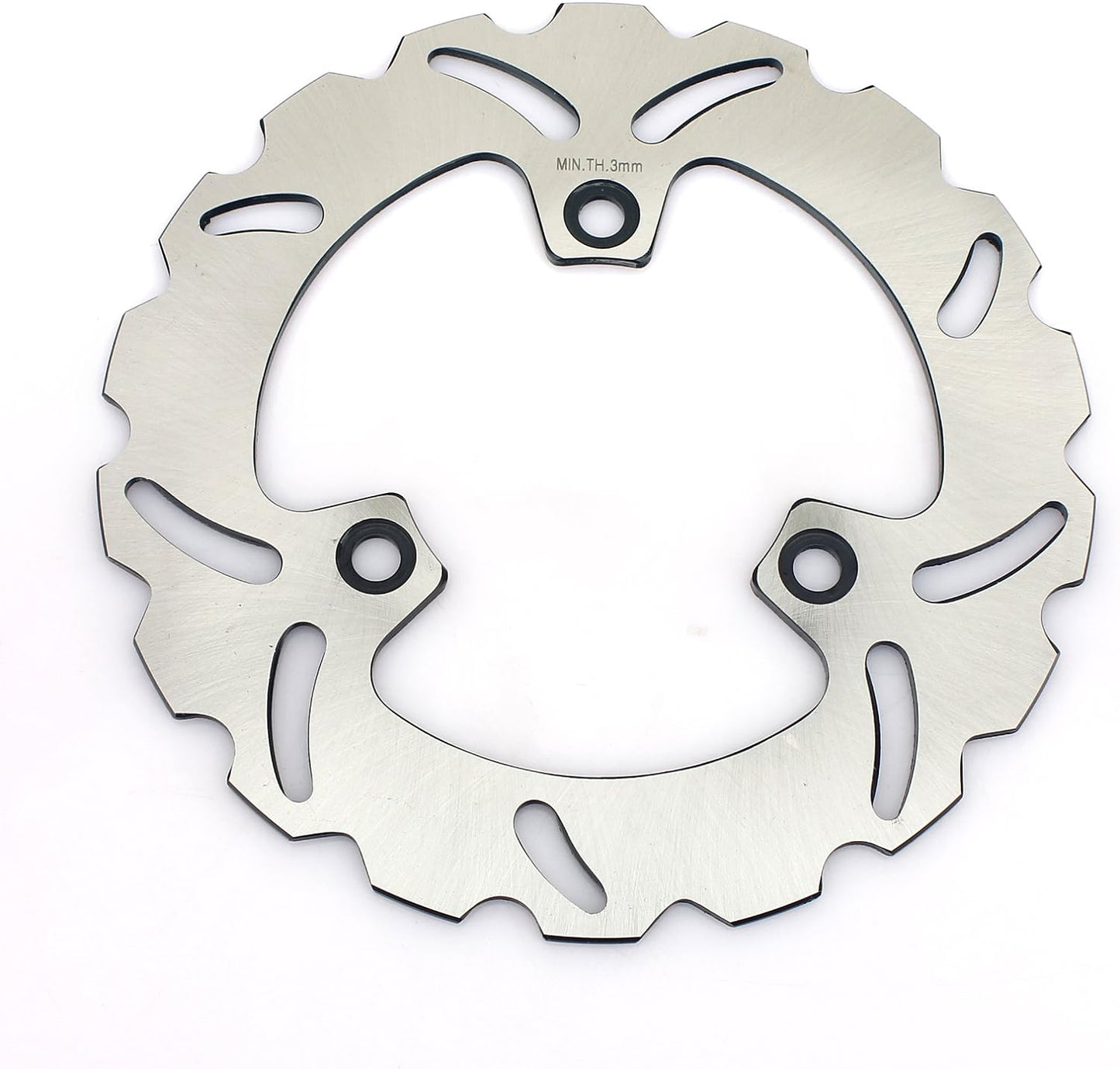

Rear Brake Disc
Outer diameter 220mm
Inner diameter 88mm
Thickness 4mm
No of holes 3
Hole size 10.4mm
Hole spacing 110mm
