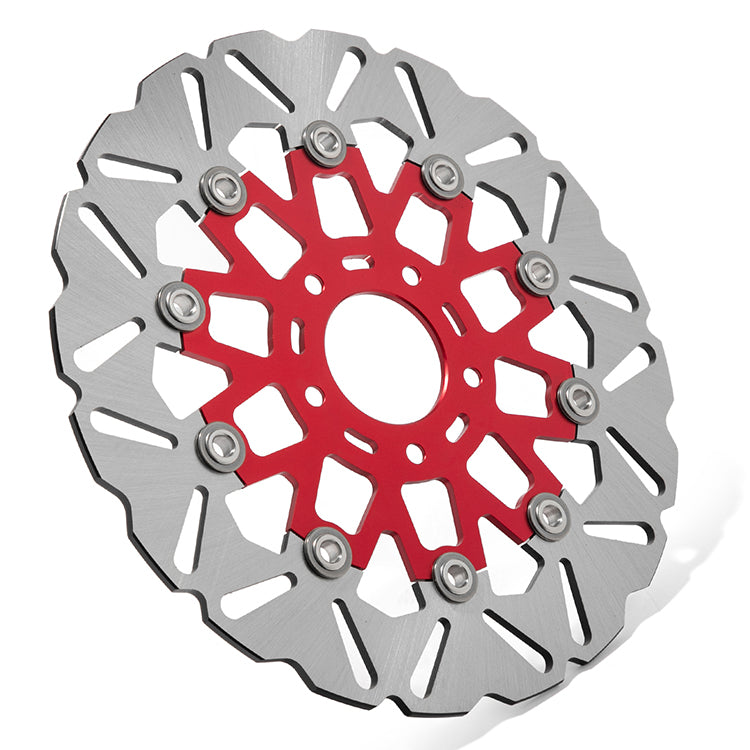

For Harley XL1200L Sportster Low 2007-2011 / XL1200V Seventy Two 2012-2013 11.5" Front 10.2" Rear Brake Disc Rotors

• Fit for:
  Harley Davidson XL 1200 L Sportster Low 2007-2011;
  Harley Davidson XL 1200 V Seventy Two 2012-2013;
  Harley Davidson XL 883 L Superlow 2011-2013;
  Harley Davidson XL 883 N Iron 2011-2013.

• Made of high quality stainless steel 420 (2Cr13). Light weight & good heat dissipation, it provides strong & reliable braking power.
• Heat treatment harness HRC 36+-2 ensure brake area not warped.
• Slotted rotor ensures water and dirt are dispersed quickly.
• Direct replacements, no modifaction needed.

• We marked the Min Thickness on the surface, it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding.

Front Disk
Outer Diameter 292 mm / 11.5in.
Inner Diameter 56.5 mm / 2.2in.
Thickness 5 mm
No. of Holes 5
Hole Size 8.5 mm
Bolt Pattern 82.5 mm

Rear Disk
Outer Diameter 260 mm / 10.2in.
Inner Diameter 56.5 mm / 2.2in.
Thickness 6 mm
No. of Holes 5
Hole Size 9.7 mm
Bolt Pattern 82.5 mm
