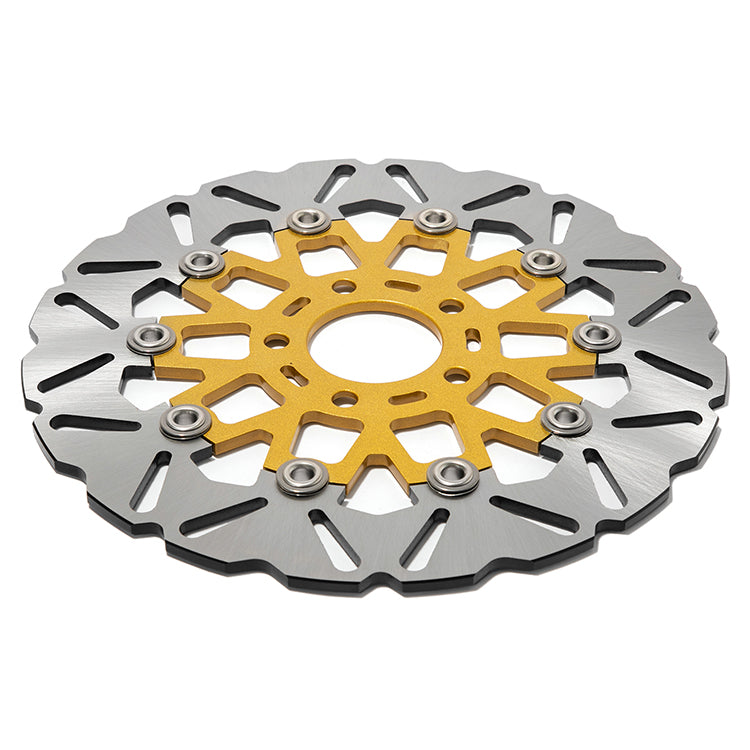

For Harley FXLRS Low Rider S 2018-2023 / FXLRS Low Rider ST 2022-2023 11.8" Front 11.5" Rear Brake Rotors

• Fit for:
  Harley Davidson FXDF Fat Bob 2008-2017;
  Harley Davidson FXBS Fat Bob 2018-2021;
  Harley Davidson FXFB Fat Bob 114 2018-2023;
  Harley Davidson FXLRS Low Rider S 2018-2023;
  Harley Davidson FXLRS Low Rider ST 2022-2023.

• Made of high quality stainless steel 420 (2Cr13). Light weight & good heat dissipation, it provides strong & reliable braking power.
• Heat treatment harness HRC 36+-2 ensure brake area not warped.
• Slotted rotor ensures water and dirt are dispersed quickly.
• Direct replacements, no modifaction needed.

• We marked the Min Thickness on the surface, it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding.
• Floating Front / New Design has a new pattern.

Front Disk
Outer Diameter 300 mm / 11.8in.
Inner Diameter 56.5 mm / 2.2in.
Thickness 5 mm
No. of Holes 5
Hole Size 8.5 mm
Bolt Pattern 82.5 mm / 3.2in.

Rear Disk
Outer Diameter 292 mm / 11.5in.
Inner Diameter 56.5 mm / 2.2in.
Thickness 5.8 mm
No. of Holes 5
Hole Size 10.5 mm
Bolt Pattern 82.5 mm / 3.2in.
