FASTACE 10.5" Piggyback Rear Coil Shock Absorber Upgrade for Arctic Leopard XE Pro S

Fitment / Vehicle Compatibility:

• Primary Fitment: Arctic Leopard XE Pro S Electric Dirt Bike

High-Performance FASTACE Aftermarket Rear Shock Suspension for Arctic Leopard XE Pro S

Upgrade your electric dirt bike's rear suspension with these premium FASTACE aftermarket coil shock absorbers, engineered specifically as high-performance replacements for the Arctic Leopard XE Pro S. Designed to handle heavy impacts, aggressive off-road jumps, and technical mountain terrain, these piggyback shocks deliver exceptional stability and wheel contact across all trail conditions.

Choose between the standard FASTACE 10.5" BDA53RC or the upgraded FASTACE BDA69RV with advanced high/low-speed compression adjustment.

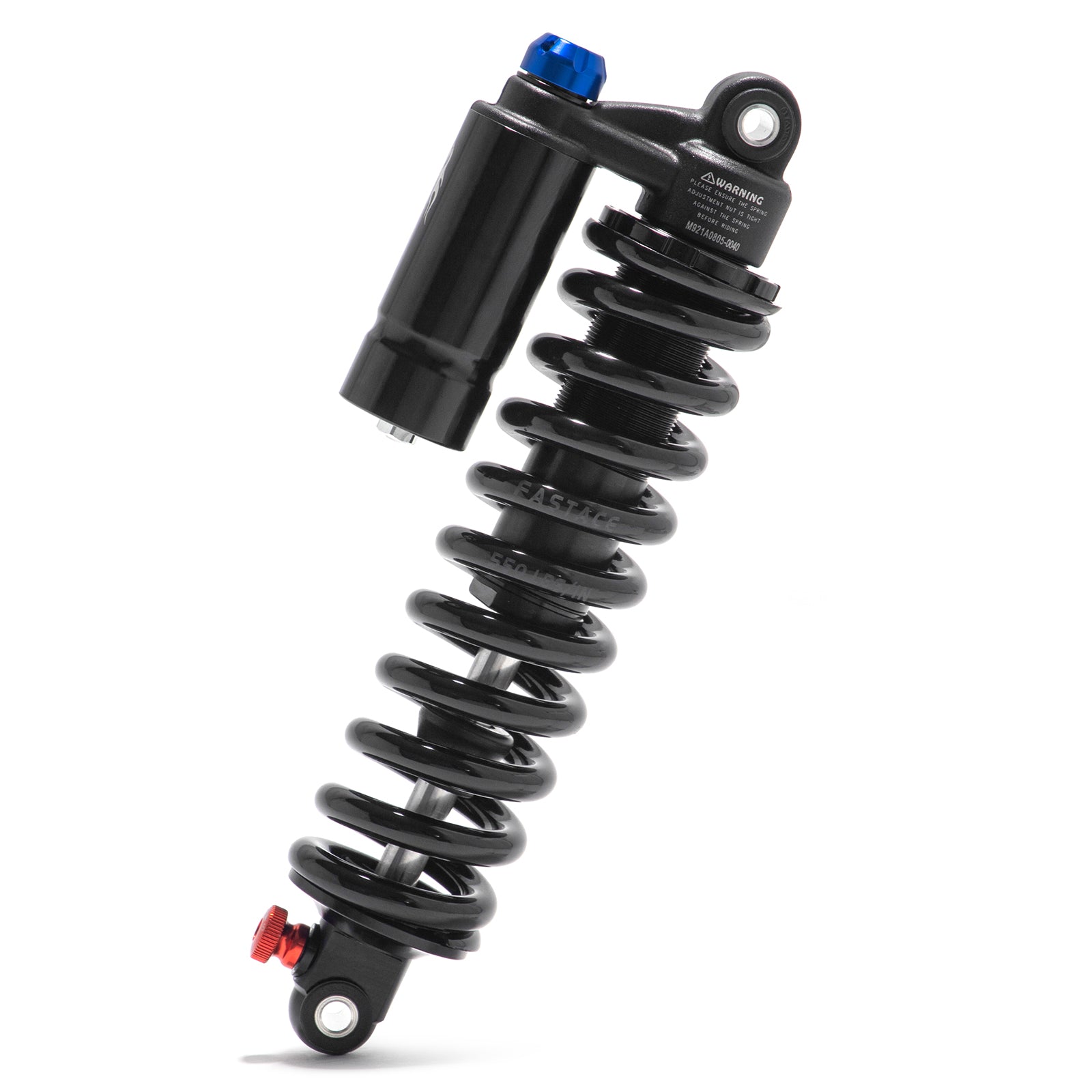

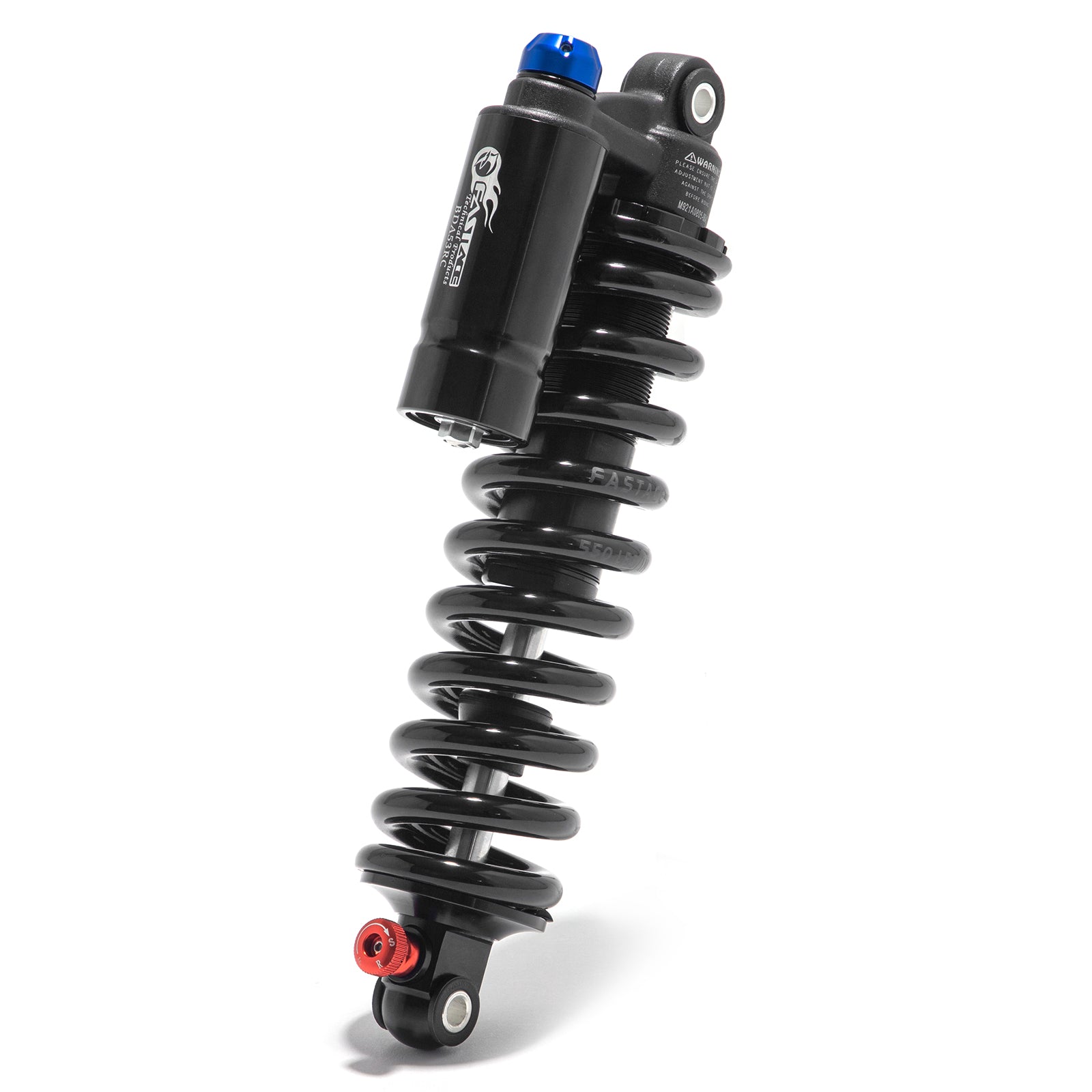

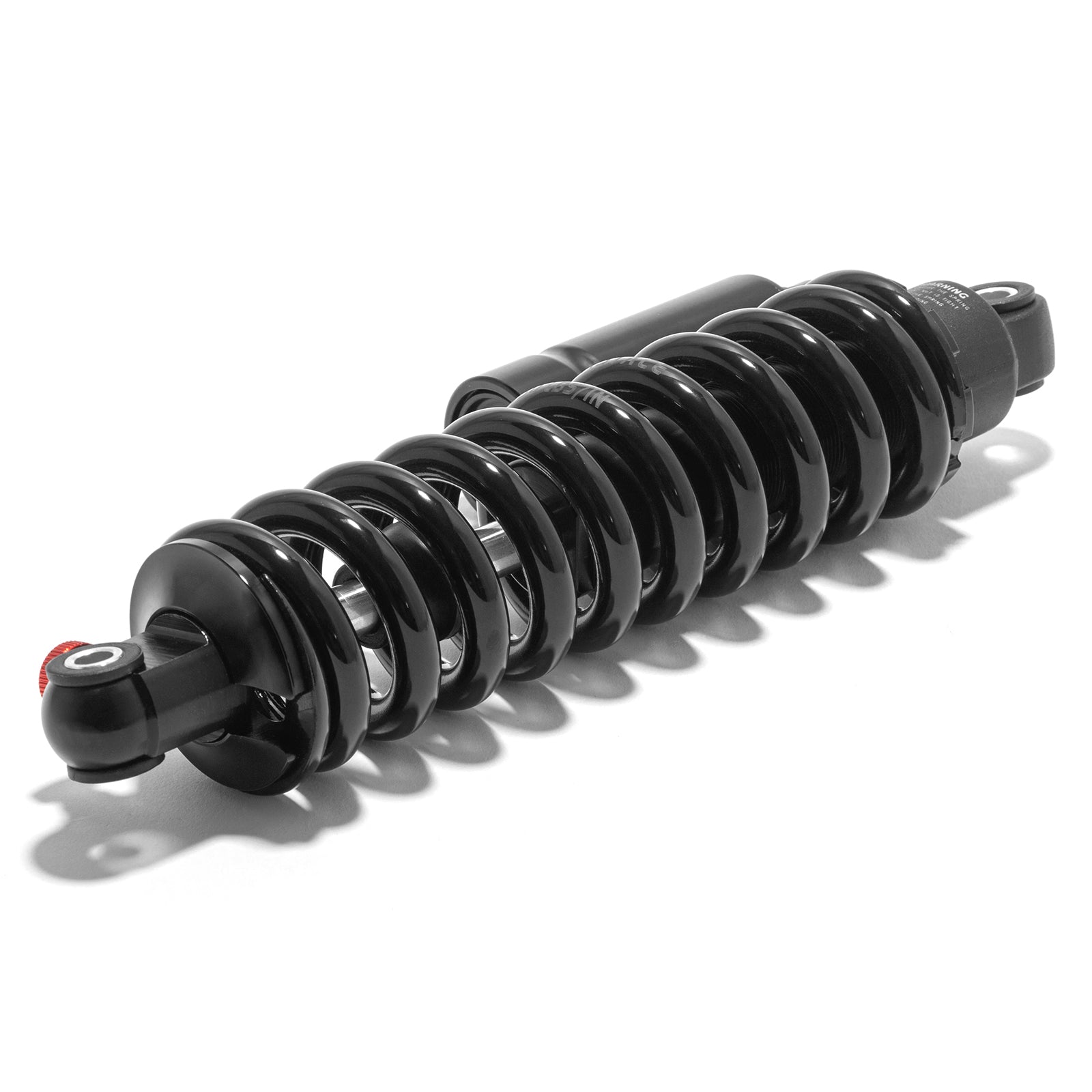

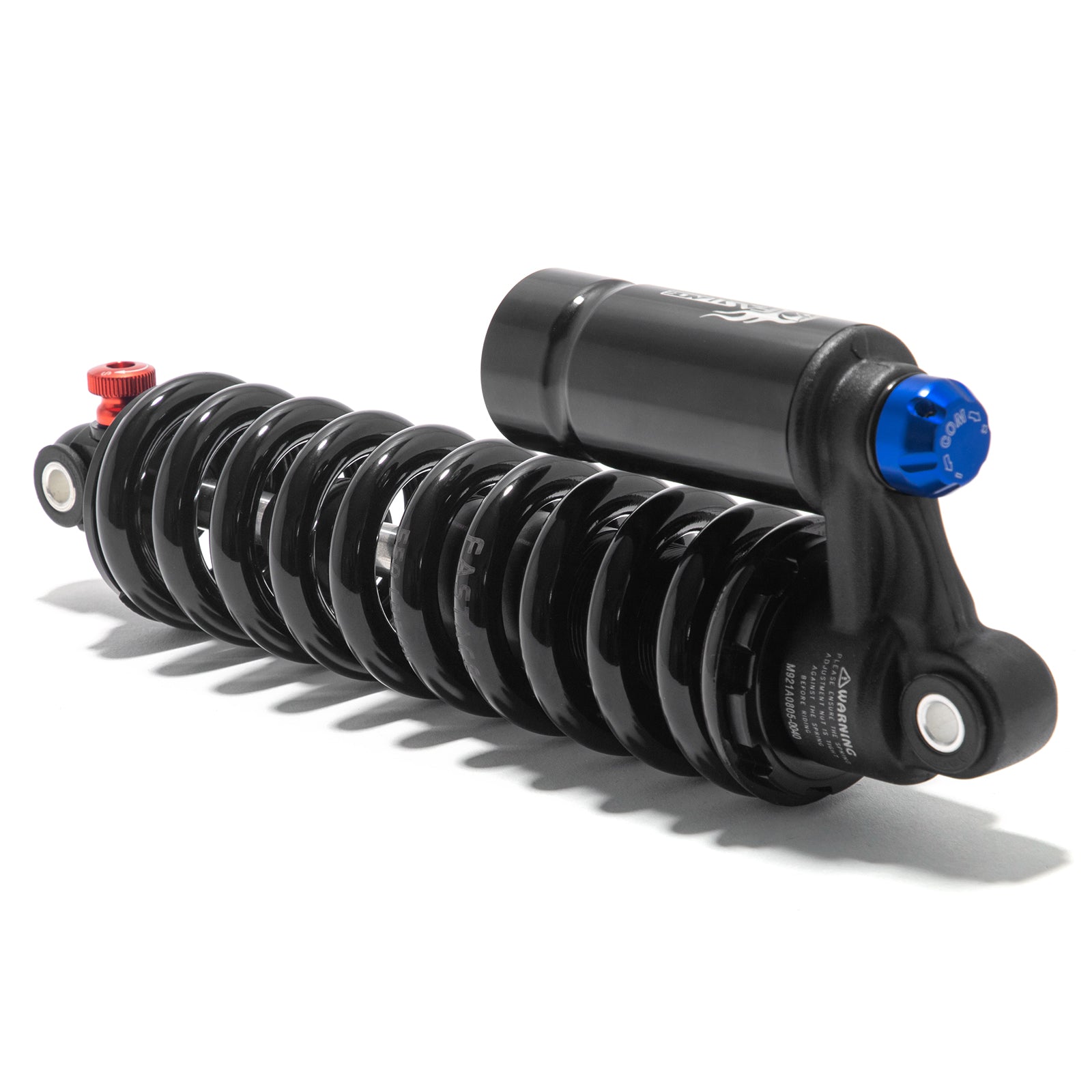

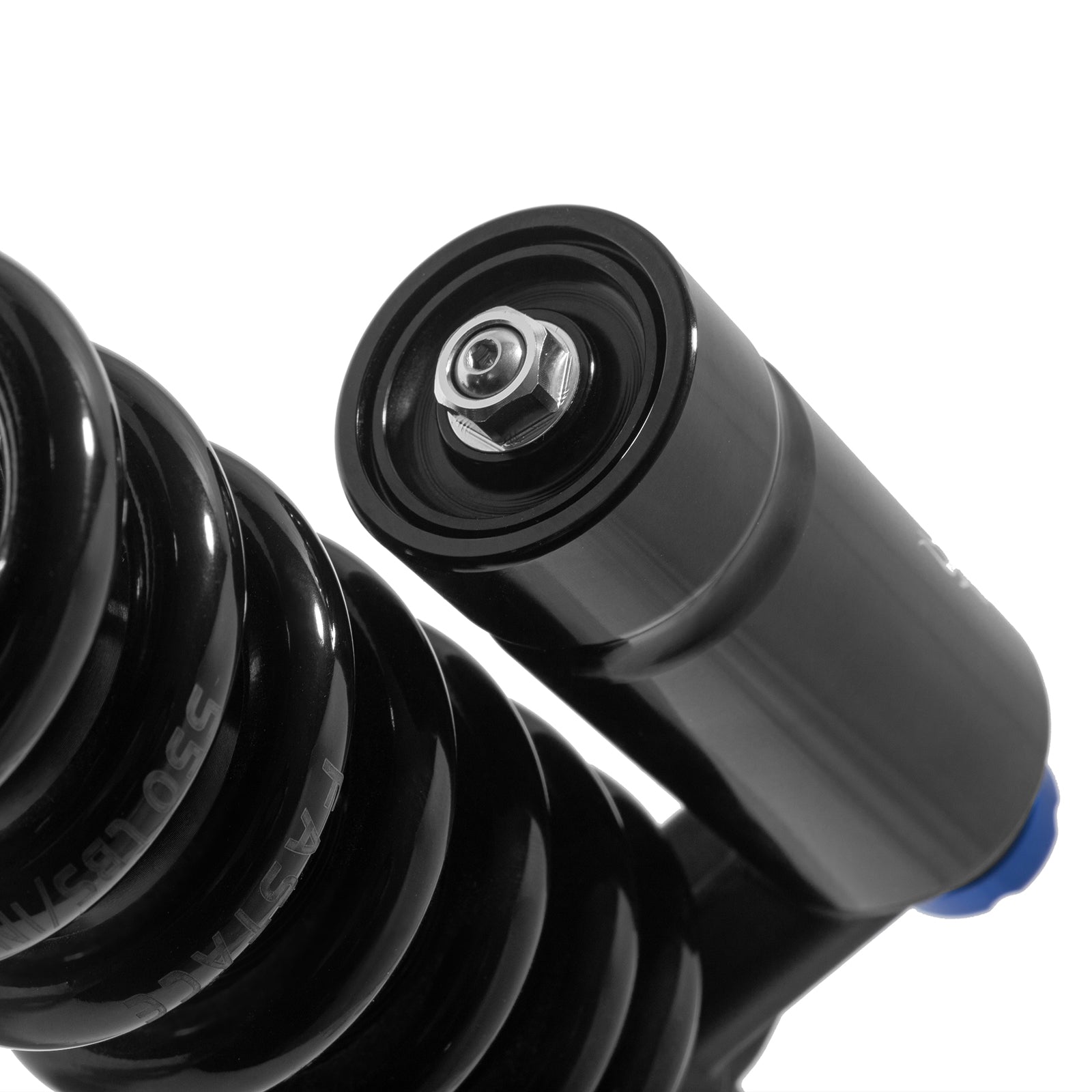

1. FASTACE 10.5" BDA53RC Rear Shock (Standard Version)

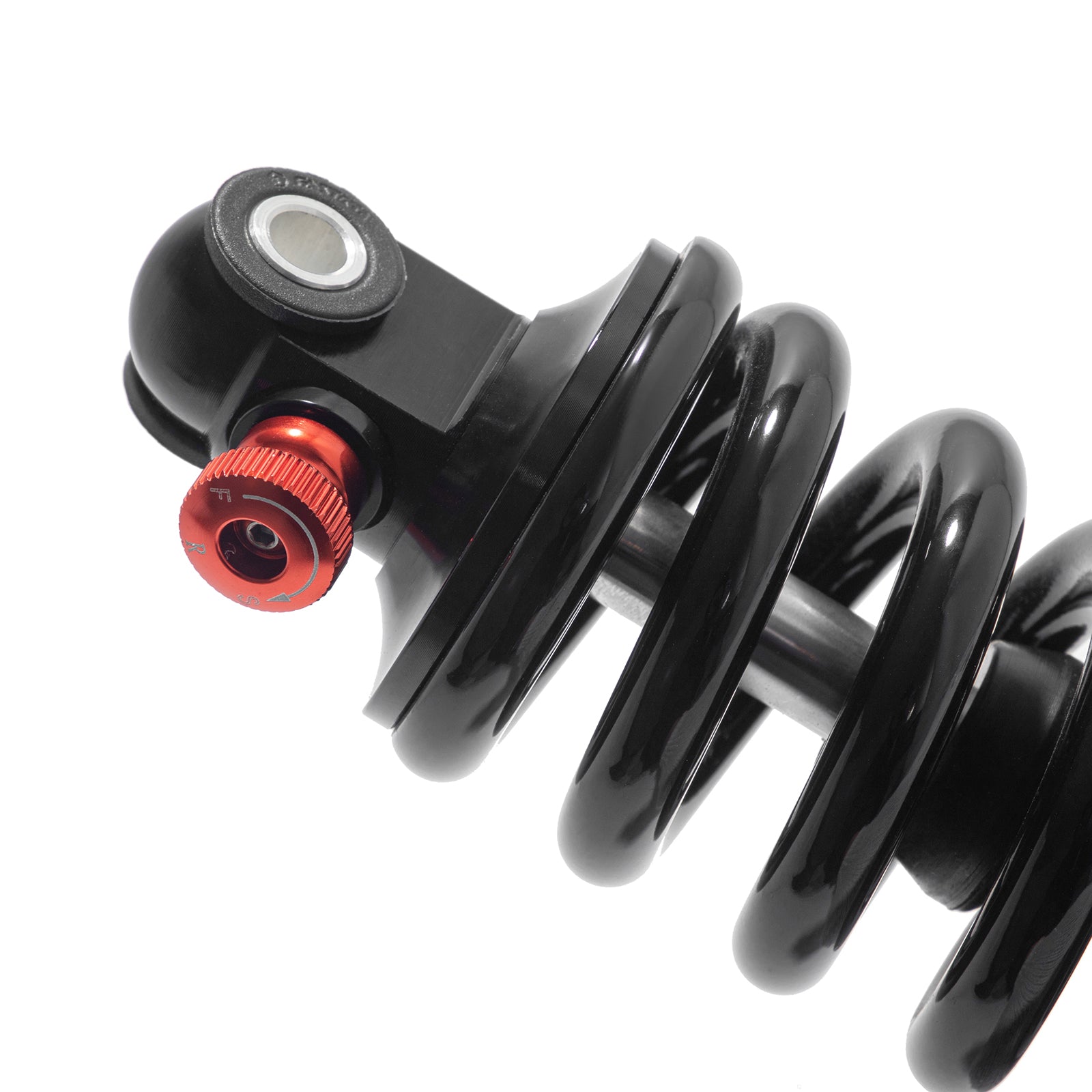

Constructed from high-strength AL-7075 aluminum alloy with an anodized surface to prevent oxidation, this heavy-duty piggyback coil shock is designed for big impacts and aggressive riding styles (AM / FR / DH).

• Eye to Eye x Travel: 265 mm × 85 mm (10.5" × 3.35")
• Spring Rate: 550 lbs coil spring (optimized for heavy riders weighing 100 kg–130 kg).
• Material: Premium AL-7075 High-Strength Aluminum.
• Adjustability: Rebound damping, compression damping, spring preload, and height adjustment.
• Compatibility: Fully compatible replacement for DNM RCP 2S setups.

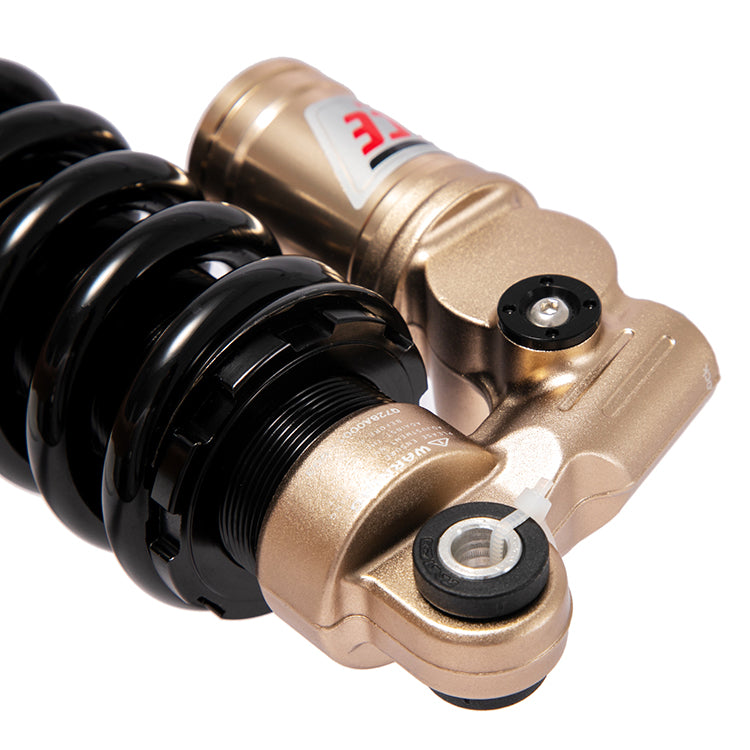

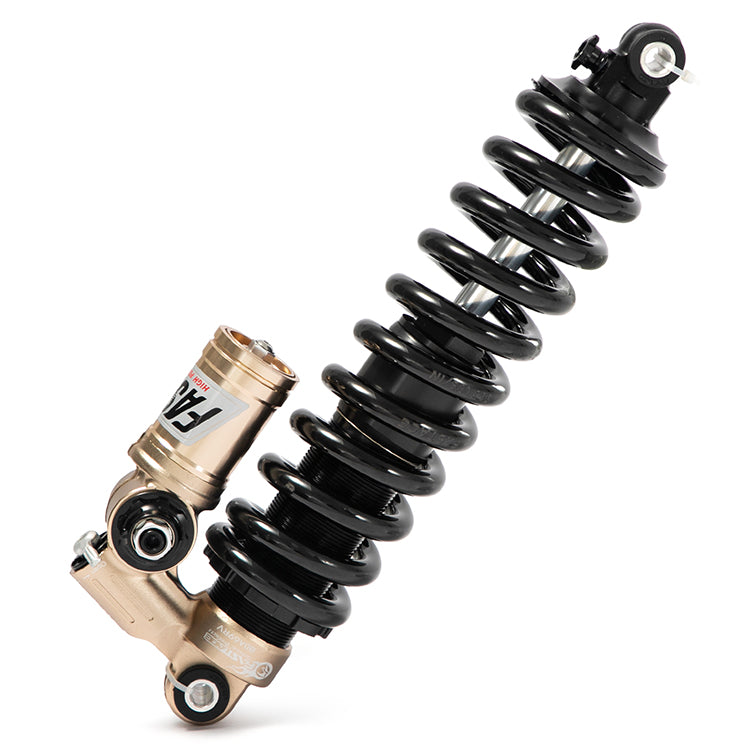

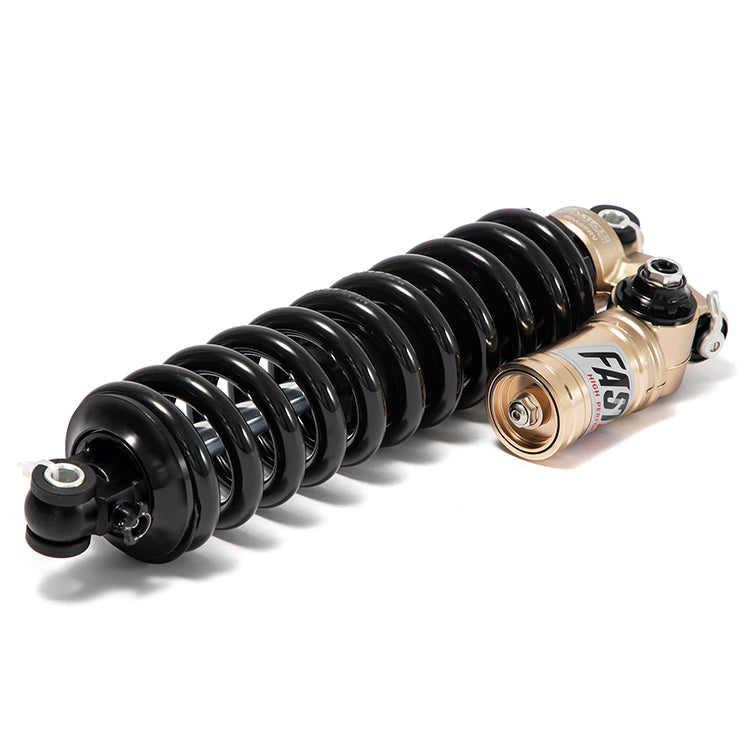

2. Upgraded FASTACE BDA69RV Rear Shock (Advanced Version)

Featuring a sophisticated oil-gas separated design with an internal reserve air chamber, the BDA69RV provides race-ready performance and extended durability under extreme usage.

• Spring Rate Range: Adjustable 450 lbs – 850 lbs.
• Oil-Gas Separation: Integrated piggyback air chamber prevents cavitation and maintains consistent damping under thermal stress.
• Advanced Adjustments: Features external spring preload adjustment, rebound damping tuning, a quick ON/OFF compression switch, and precise high & low-speed compression damping controls.

Specifications:

• Product Type: Aftermarket Rear Suspension Shock Absorber
• Design: Piggyback Reservoir Coil Shock
• Condition: 100% Brand New, Never Mounted
